Solar Marine Lantern
>
|
| Place of Origin | China |
| Brand Name | Anhang |
| Certification | CE, RoHS |
| Model Number | AH-LS-C4 |

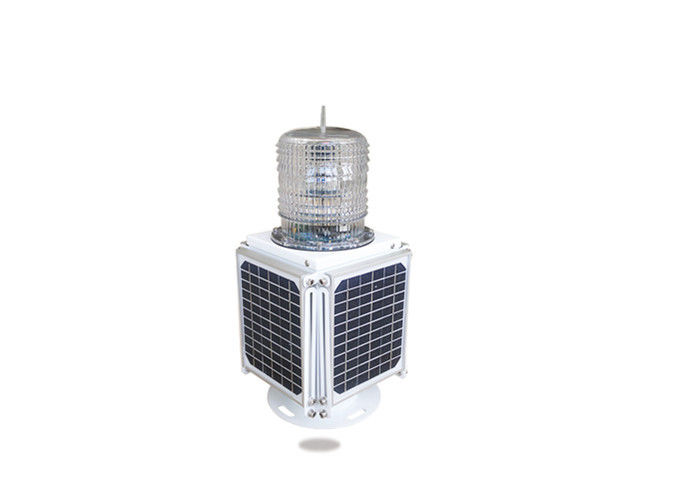

AH-LS-C4 LED Navigation Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles.And all solar panel vertical angle is adjustable ensure it could be used in different area. Best to accept lighting and higher conversion efficiency.
ON/OFF button located interface, so there is no need to open the light, user could turn on/off light easily.
Product Overview:
IALA E-200-1
Electrical
Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs
Physical
PC housing, UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
4-side solar panel vertical angle adjustable
ON/OFF button interface. Characteristic intelligent design, the best in every aspect
System design
Solar panel as photocell for day/night operation(dusk to dawn)
Equipped with rotary switches for adjust 256 kinds of flashing rate comply with IALA
Optional
► User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation
► External charger
► Wireless remote control
► GSM Monitoring
► RS232 485 port
► GPS Sync flashing
Application
AH-LS-C4 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.
More detailed parameter:
| Light Source | LED |
| Available Colors | Red, Green, Yellow, White, Blue |
| Visible Range(NM) | 4-6nm (AT@0.74) |
| Flash Characteristics | Adjustable 256 IALA light characteristics |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 160×160×Φ12 |
| Dimension(mm) | 220×220×470 |
| Weight(kg) | 10 |
| Charging Regulation | Microprocessor controlled |
| Battery Capacity (Ah) | Depends on different visible range |
| Battery type | Valve-Regulated Lead Acid Battery |
| Product Life Expectancy | Average 5 years |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| IALA |
Signal colors compliant to IALA E-200-1 |
Contact us:
Produce imagine:
Express:
Shenzhen Anhang Technology Company Limited is a specialized enterprise focusing on reseach, production, sales and after-sales service of navigation marine lanterns, and have more than 8 years manufacturing experience for clients from whole world. If you need my help, feel free to contact me.
