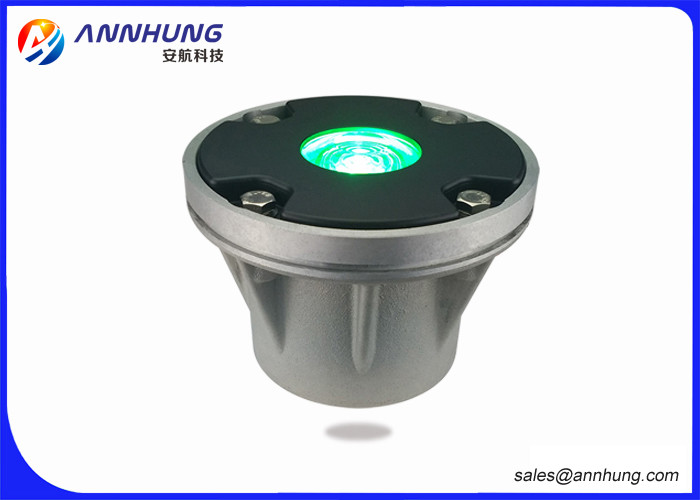

Painted Aluminum Heliport Aiming Point Light ICAO LED Infrared Night Vision Goggles
Product Details
| Operating Voltage: | 110-240VAC, 48VDC, 24VDC Or Others | Body Material: | Anodized Die-casting Aluminum |
|---|---|---|---|
| Base Material: | Painted Aluminum | Product Life Expectancy: | Average 5 Years |
| Ambient Temperature(℃): | -55~70 | Humidity: | 0-100% |
| Wind Speed: | 80m/s | ||
| Highlight |
portfolio landscape lighting,perimeter lighting products |
||
Product Description
Heliport Inset light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.It could be used as Aiming point light, perimeter light of FATO (Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway, runway, flight path Lighting, etc. The emitting color is green or yellow or white or blue. Die-casting aluminum covered by black hard anodizing layer have good corrosion protection and load bearing,longer life.
Compliance
** ICAO Annex 14 Volume ǁ Heliports 5.3.
** FAA AC 150/5390-2B Heliport Design Guide
Electrical
* LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
* Power supply available in AC(110-240VAC), DC48V
Physical
Pressure resistance lens allowed the vehicles go through on light
Die-casting aluminum covered by black hard anodizing layer have good corrosion protection and load bearing
IP68 waterproof ensure light work fine underground
Optional
► Infrared LED for pilot using NVG(Night Vision Goggles)
► Controller for power supplying and turn ON/OFF light
► VHF pilot to ground remote control
► Marine treated
Application
Helipad/Heliport TLOF areas
Heliport FATO ares
Helipad Runway
Helipad taxiway
Aiming point light
More product parameter:
| Light Source | CREE Ultra high intensity LED |
| Available Colors | Green, White, Yellow, Blue, Red |
| Intensity(cd) | ≥100cd |
| Output(watts) | 18 |
| Product Service Life | Average 5 years |
| Flash Characteristics | Steady burning |
| Operating Voltage | 110-240VAC, 48VDC, 24VDC or others |
| Base Material | Painted aluminum |
| Body Material | Anodized Die-casting aluminum |
| Overall Size (mm) | 194×194×138 |
| Installation Size | 199×199×146 |
| Waterproof | IP65 |
| ICAO | ICAO Annex 14 Volume ǁ Heliports 5.3 |
Online communication:
Delivery:
Product product imgine:
Every step from material to production is the best choice for your purchase.
