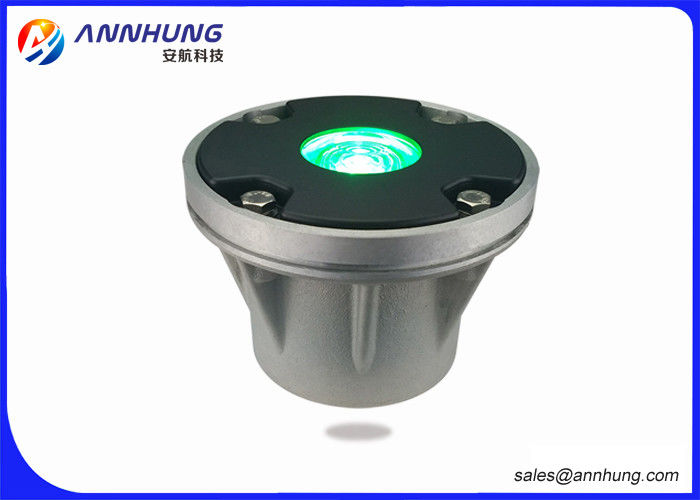

Intensity 100cd Helipad Landing Lights Inset Runway / Taxiway Lamp 20 Watt
Product Details
| Model: | AH-HP-I | Material: | Dia-casting Aluminum |
|---|---|---|---|
| Color: | Blue, Green, White Etc. | Certificate: | ICAO |
| Application: | Runway, Taxiway | Light Intensity: | 100cd |
| Highlight |
portfolio landscape lighting,perimeter lighting products |
||
Product Description
Bue LED Helipad Landing Lights Inset Runway and Taxiway Light
1. Product Name:Heliport light
2. Mode: AH-HP-I
3. Standard: ICAO Annex 14
4. Light intensity: 100cd
5. Emitting color:Green or yellow
6. Light source: LED
7. Service life of LED: ≥100,000hours
8. Operating voltage: AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V)
9. Power consumption: 20W
10. Working Mode : Steady-burning mode
Compliance
l ICAO Annex 14 Volume II Heliports 5.3.7, 5.3.8
l FAA AC 150/5390-2B Heliport Design Guide
| SPECIFICATIONS | AH-HP-I Heliport Inset Light |
| Light Characteristics | |
| Light Source | CREE Ultra high intensity LED |
| Available Colors | Green, White, Yellow, Blue, Red |
| Intensity(cd) | ≥100cd |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 110-240VAC, 48VDC, 24VDC or others |
| Power(W) | 7 |
| Physical Characteristics | |
| Body Material | Anodized Die-casting aluminum |
| Base Material | Painted aluminum |
| Overall size(mm) | 194×194×138 |
| Installation size(mm) | 199×199×146 |
| Weight(kg) | 4.5 |
| Product Life Expectancy |
Average 5 years |
| Waterproof | IP68 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume ǁ Heliports 5.3 |
| Options Available | |
| Infrared LED compatible for NVG (Night | |
| Vision Goggles) | |
| Marine Treated | |
|
VHF pilot to ground remote control |
Drawing
10. Working Mode : Steady-burning
