Medium Intensity Solar Powered Aviation Lights High Chimney Bulding Safety
Product Details
| Light Source: | High Intensity LED | Emitting Color: | Red |
|---|---|---|---|
| Horizontal Output(degrees): | 360 | Vertical Divergence(degrees): | ≥3 |
| Flash Characteristics: | Flashing 20-60FPM | Operation Mode: | Dusk-to-Dawn Operation(Solar Panel As Photocell) |
| LED Life Experience(hours): | >100,000 | Operating Voltage: | 12 |
| Circuit Protection: | Integrated | ||
| Highlight |
solar tower light,solar powered led flashing lights |
||
Product Description

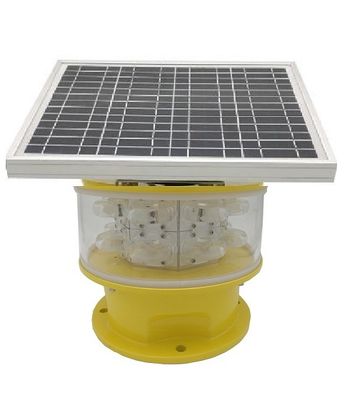

This AH-MI-B Medium-intensity Type B Aviation Obstacle Light, designed for marking top of obstruction which height is between 45 to 105 meters.Ultra high intensity LED is used as light source which make performance better, and solar panel vertical degree is adjustable(30° ) for get as much as sunlight in different area, suitable many sicuations.
Compliance
** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light
** FAA L-864
Electrical
* Ultra high intensity LED light source saving power consumption and maintenance
Physical
UV & vibrations protected polycarbonate lens for converging light
Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation
Battery: Lithium ion battery
System design
♦ Solar panel as photocell for day & night working mode (dusk to dawn mode)
♦ ON/OFF button beside base
Optional
► GPS Synchronization
► Infrared LED for pilot using NVG
Application
AH-MI-B solar medium-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine
where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity lights light installed on the lower place.
More product parameter:
| Light Source | Ultra high intensity LED |
| Intensity(cd) | 2000cd±25%(Night) |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 18 |
| Charging Regulation | Microprocessor controlled |
| Battery type | Lithium ion battery 12V |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | 120 |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Die casting aluminum |
| Overall Size (mm) | 400×260×325 |
| Installation Size | 190×190×M6 |
| Ambient Temperature(℃) | -35~80 |
| Humidity | 0~95% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition July 2013, table 6.3 Medium-intensity Type A Obstacle Light |
Our service:
Delivery logistics:
We will try our best to help every customer also provide professional technical support. If you have any question,feel free to contact me
