FAA Type B Warning Lights, Medium Intensity LED Obstruction Light High Pole Safety Light
Product Details
| Light Source: | High Intensity LED | Available Colors: | Red |
|---|---|---|---|
| Intensity(cd): | ≥2,000cd | Horizontal Output(degrees): | 360 |
| Vertical Divergence(degrees): | 3 | Operation Mode: | Dusk-to-dawn Automatically As Standard. 24hours Operation As Option |
| Operating Voltage: | DC(12V, 48VDC) Or AC(110-240VAC) | Power(W): | 10 |
| Waterproof: | IP66 | ||
| Highlight |
tower warning lights,airplane warning lights |
||
Product Description

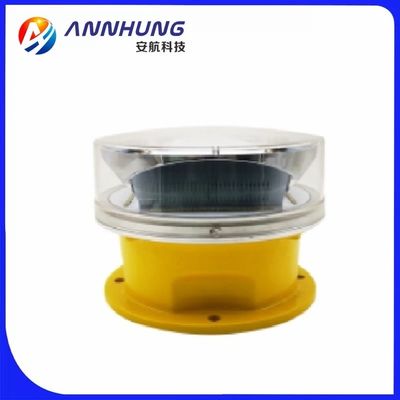

FAA Type B Warning Lights, Medium Intensity LED Obstruction Light High Pole Safety Light
This Medium-intensity Type B L864 Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed lens converging light to very small vertical divergence 3° make it totally compliance with ICAO standard.
Compliance
** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light
** FAA L-864
Electrical
* CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
* Power supply available in DC(12V, 48VDC) or AC(110-240VAC)
Physical
Unique design and UV protected polycarbonate lens for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high.
System design
♦ Built-in photocell for day/night operation(dusk to dawn operation)
♦ Surge and lightning protection
Optional
► Alarm contact for remote monitoring
► User adjustable flashing rate(20, 30, 40, 60 flashes/minute)
► GPS synchronization
Application
AH-MI-B2 medium-intensity obstalce light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.
More detailed parameter:
| SPECIFICATIONS | AH-MI-B2 LED Medium-intensity Type B L864 Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | CREE high intensity LED |
| Available Colors | Red(Other color is optional) |
| Intensity(cd) | ≥2000cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 3 |
| Flash Characteristics | 20-60 flashes per minute(factory setting: 20fpm) |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12V, 48VDC) or AC(110-240VAC) or others |
| Instantaneous power(W) | 40 |
| Average Power(W) | 3W(20fpm) |
| Lightning surge |
IEC61000-4-5 L- N ±3kV IEC61000-4-5 L- PE ±6kV IEC61000-4-5 N- PE ±6kV
|
| Electrostatic | IEC61000-4-2 Contact discharge 8kV |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 190×190×θ12 |
| Dimension(mm) | 229×229×168 |
| Weight(kg) |
2.5
|
| Product Life Expectancy | 5 years Plus |
| Environmental Factors | |
|
Ambient Temperature(℃)
|
-40~55 |
| Storage temperature(℃) | -55~70 |
| Humidity | 10%-95%RH(No condensation) |
| Wind Speed | 240Km/h |
| Waterproof | IP66 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Seventh edition 2016, table 6.3 | |
| Medium-intensity Type B Red Obstacle Light | |
| FAA | L-864 |
| Options Available | |
| Flashing rate | |
| NVG(Night Vision Goggles) compatible LED | |
| Dry contact alarm(NO COM NC) | |
| GPS sync flashing | |
| RS485 communication | |
| Bird deterrent spike |
Contact us:
Application scenario:
FAA Type B Warning Lights, Medium Intensity LED Obstruction Light High Pole Safety Light
Datasheet download: download AH-MI-B2 LED Medium-intensity Type B L864...
