ICAO Double Aircraft L810 LED Aviation Obstruction Light Backup Lamp Design
Product Details
| Light Source: | LED | Emitting Color: | Red |
|---|---|---|---|
| Intensity(cd): | 32.5cd | Horizontal Output(degrees): | 360 |
| Vertical Divergence(degrees): | ≥10 | Flash Characteristics: | Steady/Flashing(20fpm) Adjustable |
| Operation Mode: | Dusk-to-Dawn Operation | LED Life Experience(hours): | >100,000 |
| Operating Voltage: | 3.7 | Circuit Protection: | Integrated |
| Highlight |
solar tower light,solar powered led flashing lights |
||
Product Description

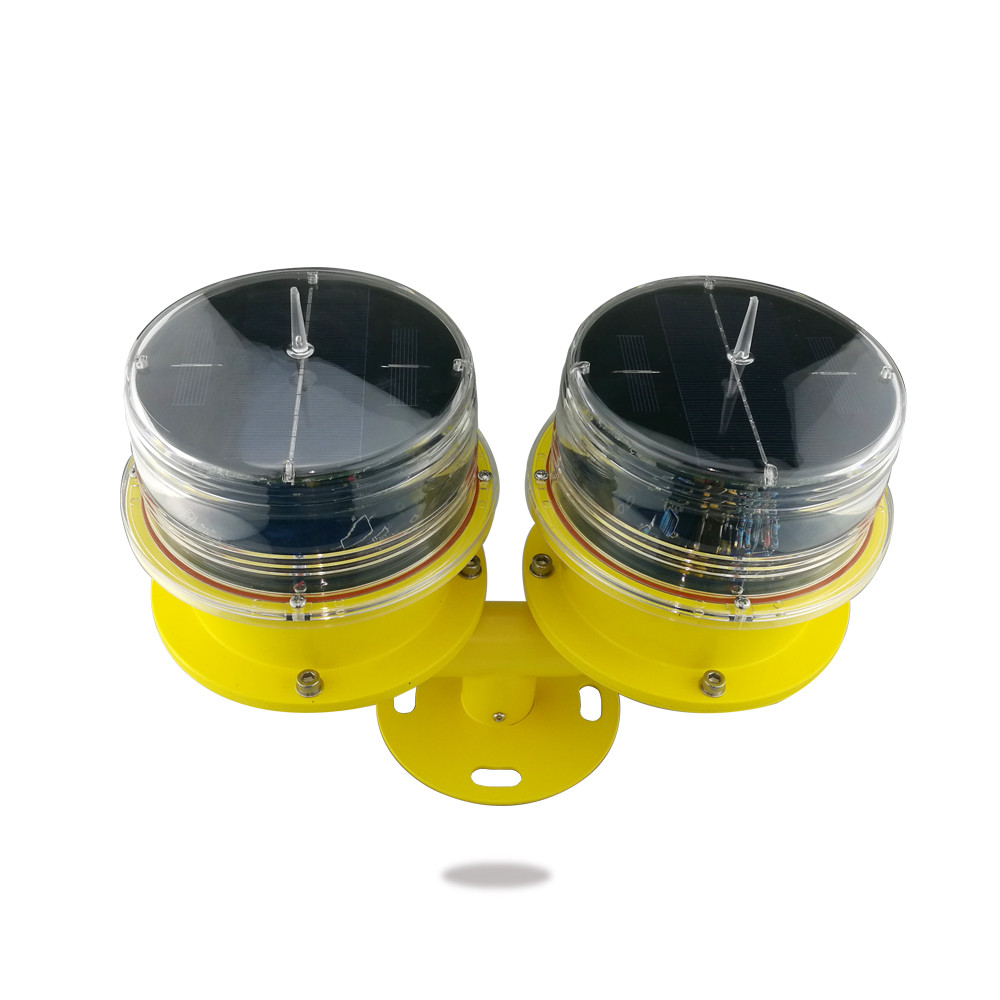

This LED Low-intensity Double Solar Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. There are two lamps on two arms, one is main lamp, another is standby. When main lamp fail, standby light turn on automatically.3/4inch thread hole under base is very suitable for pole mounting.
Compliance
** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light
** FAA L-810
Electrical
* LED as light source, life experience >100,000hours
Physical
With bird needle to prevent bird drop
UV & vibrations protected polycarbonate lens for converging light
Powder coated die casting aluminum base, light fastness, resist snow and rain
Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
Built-in photocell (Photo diode) for day & night working mode (dusk to dawn mode)
ON/OFF button make local control easy
Flashing(20fpm)/steady toggle switch under base
Main-standby mode
Optional
► GSM cellphone monitoring
► Infrared LED for pilot using NVG(Night Vision Goggles)
► Remote control ON/OFF
Application
AH-LS/T solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter
More product parameter:
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 3.6 |
| Charging Regulation | Microprocessor controlled |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 3.7 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | Steady: 60, Flashing: 150 |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Overall Size (mm) | 330×162×262 |
| Installation Size | 100×100×Φ12 |
| Product Life Expectancy | Average 5 years |
| Ambient Temperature(℃) | -35~70 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
