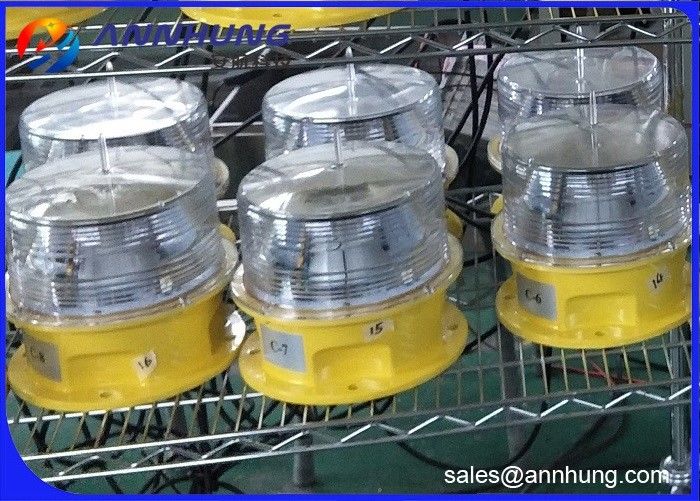

Steady Burning Flash LED Aviation Obstruction Light Medium Intensity FAA L864
Product Details
| Light Source: | LED | Available Colors: | Red (Other Color Is Optional) |
|---|---|---|---|
| Intensity(cd): | 2,000cd±25% | Horizontal Output(degrees): | 360 |
| Vertical Divergence(degrees): | ≥10 | Flash Characteristics: | Steady Burning |
| Operation Mode: | Dusk-to-dawn Automatically As Standard. 24 Hours Operation As Option | LED Life Experience(hours): | >100,000 |
| Highlight |
airplane warning lights,emergency led lights |
||
Product Description
This LED Medium-intensity light can be used alone on the top of the high-rise building, high chimney, Telecom tower etc whose height is between 45m and 105m.
Compliance
** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Obstruction Light
** FAA L-864
* LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
* Power supply available in DC(12-48VDC) or AC(110-240VAC)
Physical
Bird deterrent spike on top
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
Optional
Alarm contact for remote monitoring
Infrared LED for pilot using NVG
GSM cellphone monitoring
RS485 communication part for monitoring
GPS synchronization
Adjustable flashing rate(20-30-40-50-60)
Application
AH-MI/C Medium-intensity red light could be used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is 45-105meter, and low intensity lights installed on lower
place.
Medium-intensity type B light also use with Medium-intensity type A and high-intensity light when obstacle is more than 105meter
More product parameter:
| Body Material | UV protective Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Installation size(mm) | 190*190*12 |
| Overall size(mm) | 220*220*233 |
| Weight(kg) | 2.3 |
| Product Life Expectancy | Average 5 years |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP67 |
| Temperature(℃) | -45~80 |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition July 2013, table 6.3 Medium-intensity Red Obstacle Light |
| FAA | L-864 |
| Powder-coated color, NVG(Night Vision Goggles) compatitble LED, GSM Cell-phone Monitoring, GPS synchronization |
|
| Options Available | RS485 communication part for monitoring |
| Adjustable flashing rate(20-30-40-50-60) |
