L810 Double Solar LED Aviation Obstruction Light 32.5cd Intensity With Photocell
Product Details
| Light Source: | LED | Emitting Color: | Red |
|---|---|---|---|
| Intensity(cd): | 32.5cd | Flash Characteristics: | Steady/Flashing(20fpm) Adjustable |
| Operation Mode: | Main-standby, Dusk-to-Dawn Operation | LED Life Experience(hours): | >100,000 |
| Autonomy (hours): | Steady: 60, Flashing: 150 | Waterproof: | IP68 |
| Highlight |
tower warning lights,airplane warning lights |
||
Product Description

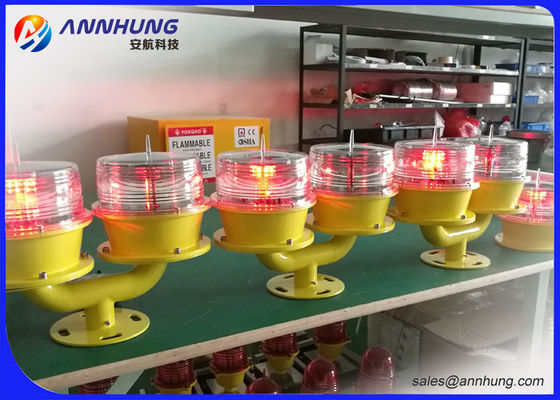

Low-intensity L810 Double Solar Aviation Obstruction Light
This LED Low-intensity Double Solar Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply.
There are two lamps on two arms, one is main lamp, another is standby. When main lamp fail, standby light turn on automatically.
3/4inch thread hole under base is very suitable for pole mounting.
Datasheet:AH-LS-T Low-intensity L810 Double Aviation Obstruc...
Compliance
l ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light
l FAA L-810
Features
Electrical
l LED as light source, life experience >100,000hours
Physical
l With bird needle to prevent bird drop
l UV & vibrations protected polycarbonate lens for converging light
l Powder coated die casting aluminum base, light fastness, resist snow and rain
l Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
l Built-in photocell (Photo diode) for day & night working mode (dusk to dawn mode)
l ON/OFF button make local control easy
l Flashing(20fpm)/steady toggle switch under base
l Main-standby mode
Optional
l GSM cellphone monitoring
l Infrared LED for pilot using NVG(Night Vision Goggles)
l Remote control ON/OFF
Application
l AH-LS/T solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
l Used alone on the top of obstacle which height is less than 45meter
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5 days, mass production time needs 1-2 weeks.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and make the payment for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website:www.annhung.com www.ahicao.com
