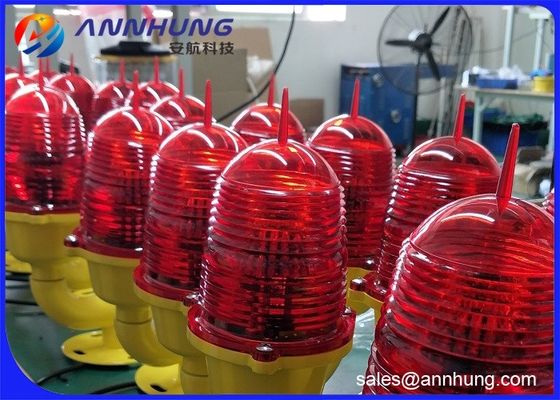

Dusk - To - Dawn Automatically Aviation Obstruction Light 360 Degrees For High Chimney
  • Dusk - To - Dawn Automatically Aviation Obstruction Light 360 Degrees For High Chimney
  • Dusk - To - Dawn Automatically Aviation Obstruction Light 360 Degrees For High Chimney

Dusk - To - Dawn Automatically Aviation Obstruction Light 360 Degrees For High Chimney

Place of Origin Guangdong, China
Brand Name annhung
Certification ICAO, FCC, FAA, CE
Model Number AH-LI/B
Product Details
Light Source:
Available Colors:
Red(Other Color Is Optional)
10cd (type A), 32.5cd(type B), Others Optional
Horizontal Output(degrees):
Vertical Divergence(degrees):
Flash Characteristics:
Steady-burning/Flashing(20fpm) Adjustable
Operation Mode:
Dusk-to-dawn Automatically As Standard.
LED Life Experience(hours):
Operating Voltage:
DC(12-48VDC) Or AC(110-240VAC)
Body Material:
Base Material:
Die-casting Aluminum
3/4 Inch Pipe Thread As Standard. 1inch As Option
High Light:

tower warning lights


airplane warning lights

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Packaging Details:136 by 136 by 220 paper carton 1 piece/box
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
3000pieces for one month
Product Description

Low-intensity L810 Single Aviation Obstruction Light for High Chimney



Single Aviation Obstruction Light

Aviation light

compliant with ICAO,FAA,CAAC. HOT SALE! Promotion!



This series of products can be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole, Tower Crane, Wind Turbine, etc whose height is lower than 45m.When obstacle object is higher than 45m, this series of products can be used with Medium-intensity or high-intensity obstruction light to potentially hazardous obstructions to air traffic with a steady or flashing red safety light.


Product Description



Main Parameter

Description Parameter
Mode AH-LI/B
Light intensity ≥ 32.5cd(Option 10cd,50cd,80cd,100cd)
Flash rate Steady-burning mode or Flashing mode(20-60times/minute)
Light source LED
Service life of LED ≥ 100,000hours
Operating voltage AC220V (option voltage,eg.AC120V,AC110V,DC48V)
Power consumption 3W
Overall size(mm) 136 by 136 by 220
Installation size 3/4inch or 1 inch
Vertical degree ≥ 10°
Horizontal degree 360°
Housing Polycarbonate
Base die casting aluminum
Weight 1Kg
Emitting color Aviation red
Ambient temperature -40℃~+70℃
Wind load 80m/s
Protectionstandard IP65



1.PC material with good impact protection strength, thermal stability, high transmittance.
2.Bird spike against bird drop.
3.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4.LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5.About 96% less power than 116W incandescent light.
6.Major Maintenance Cost Saving, Surge protection device inside light.
7.Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8.Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9.3/4inch or 1inch installation size and small volume especially being suitable for telecom and flag-pole installation way.
10.There is one switch converting between Flashing mode and Steady-burning way.
11.Five Years Warranty Period.





This product is single light with Photocell. It can work at night automatically when ambient brightness is lower than 500cd/m2.Volume of this light is very small, so it is especially suitable for flag-pole installation way. nd flag-pole installation way.



Low-intensity Type A or Type B FAA L-810
Low Intensity Single Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3



Installation Drawing
