Quality Dual LED Aircraft Obstruction Lights , LED Aircraft Warning Lights For Buildings Type A/B factory
Quality Dual LED Aircraft Obstruction Lights , LED Aircraft Warning Lights For Buildings Type A/B factory
Quality Dual LED Aircraft Obstruction Lights , LED Aircraft Warning Lights For Buildings Type A/B factory
>

Dual LED Aircraft Obstruction Lights , LED Aircraft Warning Lights For Buildings Type A/B

Brand Name: annhung
Model Number: AH-MI/H
Place of Origin: Guangdong, China
Certification: ICAO, FCC, FAA, CE
Minimum Order Quantity: 1
Price: 1-588usd/pc
Supply Ability: 1000pieces for one month

Product Details


Light Source: LED Flash Characteristics: 40FPM(flashes Per Minute)
Emitting Colors: White (Daytime); Red (Night) Intensity(cd): 20000cd±25%(Daytime)
Power(W): 20(Daytime) Horizontal Output(degrees): 360
Vertical Divergence(degrees): 3 Operating Voltage: 12VDC, 48VDC, 110VAC, 240VAC
Operation Mode: 24hours Operation LED Life Experience(hours): >100,000
Body Material: Polycarbonate Base Material: Die-casting Aluminum
Weight(kg): 4 Product Life Expectancy: 5 Years Plus
Name: Dual LED Aircraft Obstruction Lights , LED Aircraft Warning Lights For Buildings Type A/B
Highlight

tower warning lights

,

emergency led lights

Product Description

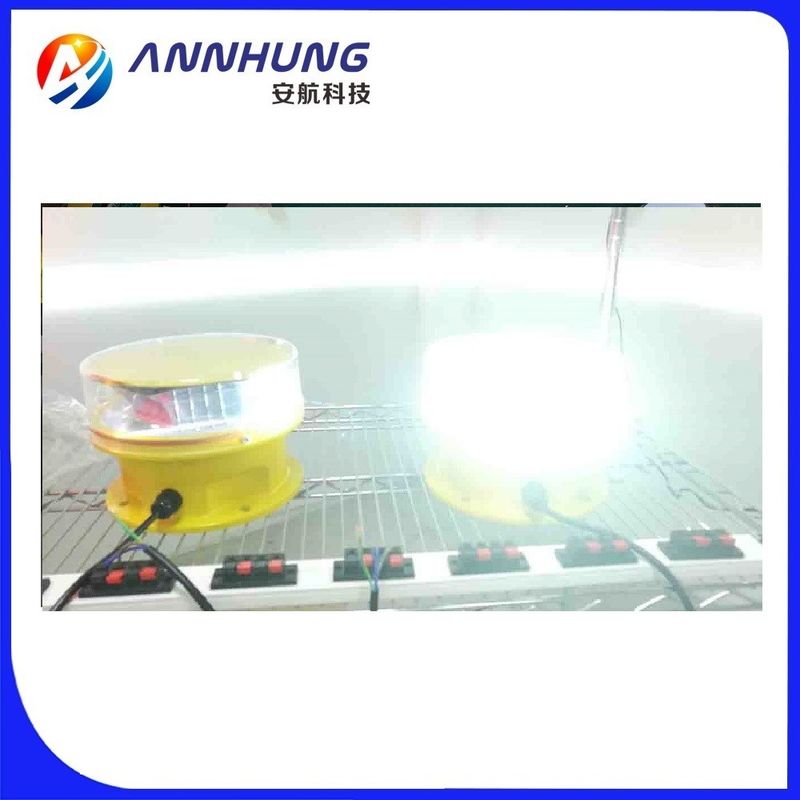

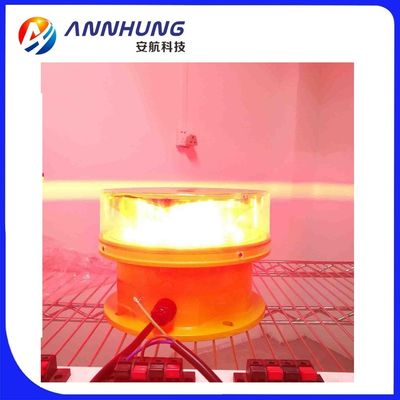

Dual LED Aircraft Obstruction Lights , LED Aircraft Warning Lights For Buildings Type A/B



This Medium-intensity Dual Light flashing red color at night and white color at daytime, designed for marking top of obstacle which height is between 45 to 150 meters.



Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance.





Product Description

1. Product Name: Aviation Obstruction Light

2. Mode: AH-MI/H

3. Standard: ICAO (Aerodromes Annex 14) , FAA L-864/8665

4. Light intensity: 2,000cd(Night) to 20,000cd(Daytime)

5. Working Mode : Flashing mode, 20times/minute(Night); 40times/minute(Daytime)

6. Light source: LED

7. Service life of LED: ≥100,000hours

8. Operating voltage: AC220V (option voltage,eg.AC120V,AC110V,DC48V)

9. Material:
- Housing: PC,- Base: die casting aluminum

10. Emitting color: Red (Night); White (Daytime)

11.Product Life Expectancy: 5 years Plus



Compliance



l ICAO Annex 14 Volume 1, Forth edition, July2004, table 6.3 Medium-intensity Type B Obstruction Light, Medium-intensity Type A Obstruction Light

l FAA L-864, FAA L-865



Product Application



l AH-MI-AB medium-intensity dual Red&White light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-150meter, and most time work with low intensity lights installed on the lower place.





Physical Characteristics
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Mounting 190×190×θ12
Dimension(mm) 229×229×168
Weight(kg)

4



Product Life Expectancy 5 years Plus
Environmental Factors
Humidity 0%-100%
Wind Speed 80m/s
Waterproof IP66



Packaging & Shipping

Packaging: Paper carton 1-9 piece/box.

Delivery: In 2-10 days after payment.



Company Information



Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.

All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.



Our Services

After-sales service

1. 2 years full warranty, 5 years maintenance since the purchasing date.

2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.



Dual LED Aircraft Obstruction Lights , LED Aircraft Warning Lights For Buildings Type A/B

Datasheet download:download AH-MI-AB LED Medium-intensity Red&White D...

Product Highlights

Dual LED Aircraft Obstruction Lights , LED Aircraft Warning Lights For Buildings Type A/B This Medium-intensity Dual Light flashing red color at night and white color at daytime, designed for marking top of obstacle which height is between 45 to 150 meters. Ultra high intensity CREE LED is used for ...
