AH-MI-A2 Medium Intensity LED Aviation Obstruction Light Type A L865 24 Hours Operation
Product Details
| Light Source: | LED | Available Colors: | White |
|---|---|---|---|
| Intensity(cd): | 20000cd±25%(Daytime) 2000cd±25%(night) | Flash Characteristics: | 40-60 Flashes Per Minute |
| Horizontal Output(degrees): | 360 | Vertical Divergence(degrees): | 3 |
| Operation Mode: | 24hours Operation | Power(W): | 20(Daytime) 13(Night) |
| LED Life Experience(hours): | >100,000 | Operating Voltage: | 12VDC, 48VDC, 110VAC, 240VAC |
| Body Material: | Polycarbonate | Base Material: | Die-casting Aluminum |
| Product Life Expectancy: | 5 | Waterproof: | IP66 |
| Name: | AH-MI-A2 Medium Intensity LED Aviation Obstruction Light Type A L865 24 Hours Operation | Wind Speed: | 240Km/h |
| Highlight |
tower warning lights,emergency led lights |
||
Product Description
LightAH-MI-A2 Medium Intensity LED Aviation Obstruction Light Type A L865 24 Hours Operation
Aircraft warning light. medium intensity. red Steady-burning obstruction beacon. LED airport lamp.compliant with ICAO,FAA,CAAC
Applications
This product is mainly used on the top of high-rise building or structures, e.g. Television transmitting tower, Broadcast Tower, High-rise Building, Tower Crane, and cable stayed bridge communications Tower etc which
height is between 105 meter and 150 meter so that it can play a warning role in potentially hazardous obstructions to air traffic flashing white safety light.
Product Description

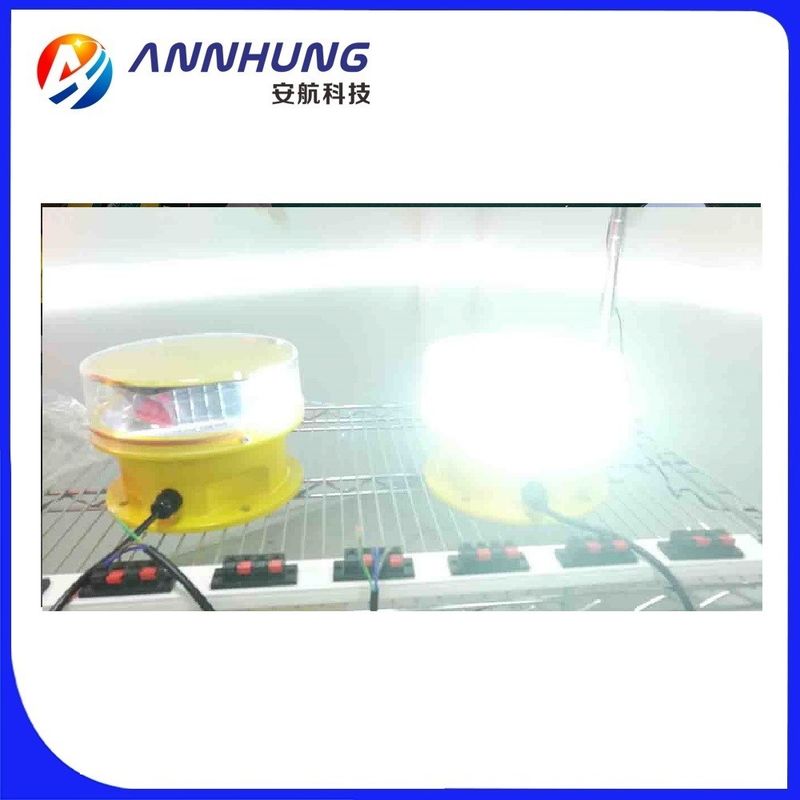

Light photo
Main Parameter
| Description | Parameter |
| Mode | AH-MI-A2 |
| Light intensity | 2,000cd ±25%(Night),20,000cd ±25%(Daytime) |
| Flash rate | Flashing mode(40-60times/minute) |
| Light source | LED |
| Service life of LED | ≥ 100,000hours |
| Operating voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| Power consumption | 20W(Night), 60W(Daytime) |
| Overall size(mm) | Φ236 by 202 |
| Installation size(mm) | Φ190 by M10 |
| Vertical degree | 3° |
| Horizontal degree | 360° |
| Material | |
| Housing | PC |
| Base | die casting aluminum |
| Weight | 4Kg |
| Emitting color | White |
| Ambient temperature | -40℃~+60℃ |
| Wind load | 80m/s |
| Protection standard | IP67 |
Function
This is Single led aviation obstruction light with Photocell. It can work automatically all day by photocell. This light can change intensity automatically .During the day, White Flashing, light intensity is 20,000cd;At night, White Flashing, light intensity is 2000cd.
Advantages
1. lightweight low wind built-in photocell and monitoring-no additional power supply
2. Integrated automatic flash synchronisation beam optical design
3. high accuracy light beam optical design
4. High borosilicate glass material with good thermal stability, high transmittance.
5. Built-in circuit protect LED, extremely reliable and cost saving.
6. Shockproof and corrosion resistant. It can be used in very poor conditions.
7. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
8. Resistant to heavy rain or storms.
9. Free maintenance and aluminum alloy Material.
10. Five year warranty
11. low power consumption and low cost of ownership.
Compliance
Medium-intensity Type A and FAA L-865
Medium-intensity Type A Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3
Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
