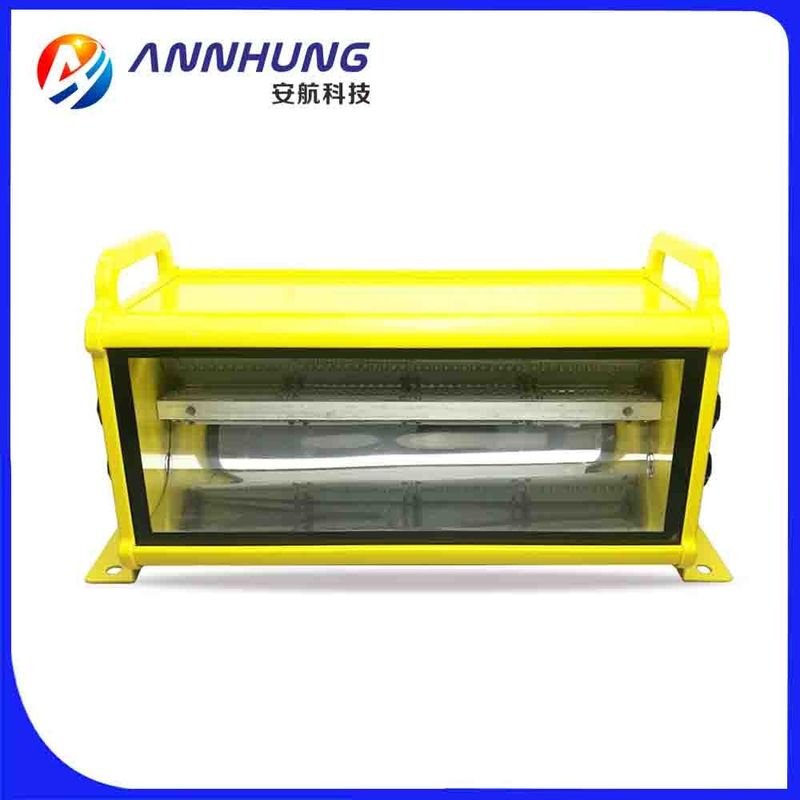

High Intensity Type A L856 Aviation Obstruction Light , Aeronautical Obstruction Light
Product Details
| Light Source: | CREE High Intensity LED | Available Colors: | White |
|---|---|---|---|
| Intensity(cd): | 200,000cd±25%(Daytime) 20,000cd±25%(Twilight) 2,000cd±25%(Night) | Horizontal Output(degrees): | 120 |
| Vertical Divergence(degrees): | 3-7 | Flash Characteristics: | 40-60 Flashes Per Minute |
| Operation Mode: | 24hours Operation, 3 Different Modes | LED Life Experience(hours): | >100,000 |
| Operating Voltage: | DC(48VDC) Or AC(110, 240V) | Power(W): | 100w |
| Name: | High Intensity Type A L856 Aviation Obstruction Light , Aeronautical Obstruction Light | Waterproof: | IP67 |
| Highlight |
tower warning lights,emergency led lights |
||
Product Description
High Intensity Type A L856 Aviation Obstruction Light , Aeronautical Obstruction Light
Aviation Obstruction Light
Aviation Light
Obstruction Light
compliant with ICAO,FAA,CAAC.
This product is mainly used on the top of Television transmitting tower, High-rise building, High chimney, cable stayed bridge,communications Tower, Cooling tower, etc which height is over 150meter so that it can play a warning role in potentially hazardous obstructions to air traffic flashing white safety light.
Advantages
1. Strong efficiency transmission.
2. International-advanced Big power and Precision integrated chip LED with high brightness and service life of light source reaching 100000hours.
3. The circuit of the light has surge protection whose lightning proof ability is In
7. 5KA/5 times, IMAX 15KA so that the light is suitable to harsh environment.
4. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
5. Baked advance aluminum alloy Material.
6. Resistant to heavy rain or storms.
7. Automatically changing light intensity, day/twilight/night intensity operating.
8. More than 91% utilizing rate of illuminating efficiency.
9. Perfect protection function in control circuit. Light will stop working automatically under condition of light short circuit, over temperature and working exceptional. After fault is solved, control circuit will automatically resume to work normally.
10. Free maintenance and aluminum alloy Material.
11. Five year warranty
12. low power consumption and low cost of ownership.
Main Parameter
| Description | Parameter |
| Mode | AH-HI-A0 |
| Light intensity | 2,000cd (Night) 20,000cd (Twilight) 200,000cd(Daytime) |
| Flash rate | 40 to 60times/minute |
| Light source | LED |
| Service life of LED | ≥ 100,000hours |
| Operating voltage | AC220V (option voltage,eg.AC120V,AC110V,DC48V) |
| Power Consumption | 100W |
| Vertical degree | 3° to 7° |
| Horizontal degree | 120° |
| Material | |
| Weight | 9Kg |
| Emitting Color | White |
| Ambient Temperature | -40℃~+60℃ |
| Wind load | 80m/s |
| Protection Standard | IP65 |
Function
The products are one Single light with photocell, so it can work all day and automatically change light intensity according to ambient brightness by photocell. When ambient brightness is less than 50cd/m2,light intensity is 2,000cd(±25%);When ambient brightness is between 50cd/m2 and 500cd/m2,light intensity is 20,000cd(±25%) ;When ambient brightness is more than 500cd/m2,light intensity is 200,000cd(±25%). All control signal wire of light is paralleled to make several lights flash synchronously.
Compliance
High-intensity Type A FAA L-856
High-intensity Type A Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3
High Intensity Type A L856 Aviation Obstruction Light , Aeronautical Obstruction Light
Catalog download:download AH-HI-A0 LED High-intensity Aviation Obst...
