Bule Elevated Taxiway Edge Helipad Landing Lights AH-HP/E Steady Burning Flash
Product Details
| Light Source: | LED | Available Colors: | Green, Yellow, White, Red, Blue |
|---|---|---|---|
| Intensity(cd): | ≥50cd | Horizontal Output(degrees): | 360 |
| Vertical Divergence(degrees): | ≥10 | Flash Characteristics: | Steady Burning |
| LED Life Experience(hours): | >100,000 | Operating Voltage: | DC(12-48VDC) Or AC(110-240VAC) |
| Power(W): | 5W | Body Material: | UV Protected Polycarbonate |
| Base Material: | Powder-coated Die-casting Aluminum | Base: | Frangible Coupling |
| Waterproof: | IP65 | ||
| Highlight |
helicopter landing lights,portfolio landscape lighting |
||
Product Description

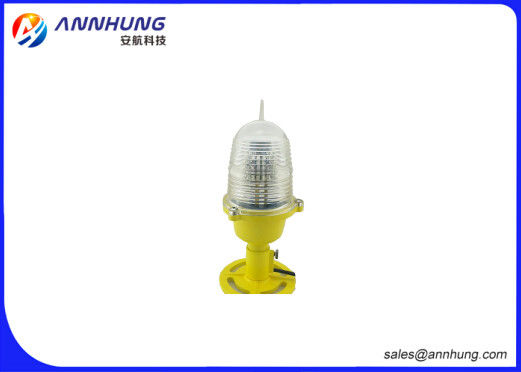

Bule Elevated Taxiway Edge Light Helipad Landing Lighting
Heliport Elevated light should not exceed a height of 25cm. There is a fragile coupling in the base connection, so if aircraft hit the light by accident, the base will break immediately to avoid more damage.
Compliance
l ICAO Annex 14 Volume ǁ Heliports 5.3.
l FAA AC 150/5390-2B Heliport Design Guide
l CAP 437
Features
Electrical
l LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
l Power supply available in AC(110-240VAC), DC48V
Physical
l Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
l UV protection Powder coated bright yellow color base make better visibility
l Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
l Fragile coupling reduce the secondary damage to helicopters effectively
Optional
l Infrared LED for pilot using NVG(Night Vision Goggles)
l Controller for power supplying and turn ON/OFF light
l VHF pilot to ground remote control
l Marine treated
Application
l Helipad/Heliport TLOF areas
l Heliport FATO ares
l Helipad Runway
l Helipad taxiway
Packaging: Plastic bag with Paper carton .
Delivery: In 2-30 days after payment.
Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
Our Services
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
