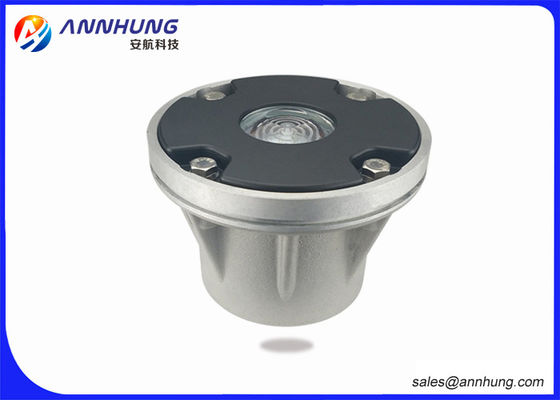

AH-HP-I Helipad Landing Lights, green FATO light, TLOF Light, Heliport lighting, ICAO Annex Helipad lighting
Product Details
| Name: | AH-HP-I Helipad Landing Lights, Green FATO Light, TLOF Light, Heliport Lighting, ICAO Annex Helipad Lighting | Light Source: | LED |
|---|---|---|---|
| Emitting Color: | Green, White, Blue, Yellow | Power: | 7W |
| Working Voltage: | 110-240VAC | Body Material: | Anodized Die-casting Aluminum |
| Base Material: | Painted Aluminum | Standard: | ICAO, CE |
| Ambient Temperature(℃): | -55~70 | ||
| Highlight |
helicopter landing lights,portfolio landscape lighting |
||
Product Description
AH-HP-I Helipad Landing Lights, green FATO light, TLOF Light, Heliport lighting, ICAO Annex Helipad lighting
Helipad Landing Lights, FATO light, TLOF Light
Heliport lighting
1. Product Name:Heliport light
2. Mode: AH-HP-I
3. Standard: ICAO Annex 14
4. Light intensity: ≥100cd
5. Working Mode : Steady-burning mode
6. Light source: LED
7. Service life of LED: ≥100,000hours
8. Operating voltage: AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V)
9. Power consumption: 7W
10. Emitting color:Green or yellow or white or blue
Compliance
l ICAO Annex 14 Volume II Heliports 5.3.7, 5.3.8
l FAA AC 150/5390-2B Heliport Design Guide
| SPECIFICATIONS | AH-HP-I Heliport Inset Light |
| Light Characteristics | |
| Light Source | CREE Ultra high intensity LED |
| Available Colors | Green, White, Yellow, Blue, Red |
| Intensity(cd) | ≥100cd |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 110-240VAC, 48VDC, 24VDC or others |
| Power(W) | 7 |
| Physical Characteristics | |
| Body Material | Anodized Die-casting aluminum |
| Base Material | Painted aluminum |
| Overall size(mm) | 194×194×138 |
| Installation size(mm) | 199×199×146 |
| Weight(kg) | 4.5 |
| Product Life Expectancy |
Average 5 years
|
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-55~70 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume ǁ Heliports 5.3 |
| Options Available | |
| Infrared LED compatible for NVG (Night | |
| Vision Goggles) | |
| Marine Treated | |
|
VHF pilot to ground remote control
|
Helipad Landing Lights Datasheet Download: download AH-HP-I LED Heliport Inset Light.pdf
Helipad Landing Lights product video:
