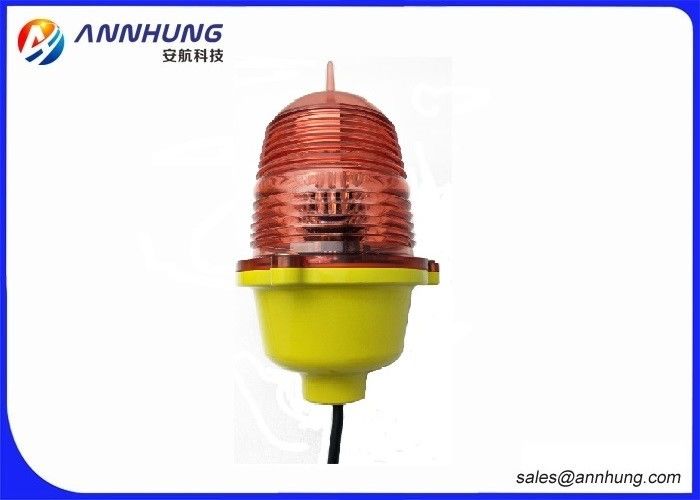

FAA L-810 Aluminum 32.5cd Led Aviation Obstruction Light
Contact Person : Alice
Phone Number : +86-13260726316
WhatsApp : +8613260726316
|Minimum Order Quantity :||1||Packaging Details :||Packaging Details:136 by 136 by 220 paper carton 1 piece/box|
|Supply Ability :||1000 Piece/Pieces per Month AH-LI/B Low-Intensity Single Aviation Obstruction Light Steady B|
|Place of Origin:||Made in Shenzhen||Brand Name:||ANNHUNG|
|Certification:||ICAO, FAA L-810||Model Number:||AH-LI/B|
|Type:||Aviation Obstruction Lights||Input Voltage(V):||AC220V (option Voltage,eg.AC120V,AC110V,DC48V)|
|Lamp Power(W):||3||Lamp Luminous Flux(lm):||100%|
|IP Rating:||IP65||Emitting Color:||Red|
|Light Source:||LED||Light Intensity:||≥ 32.5cd(Option 10cd,50cd,80cd,100cd)|
|Working Mode:||Steady Burning Or Flashing|
tower warning lights,
emergency led lights
Single LED Aviation Obstruction Light Steady Burning Flashing Adjustable
Single Aviation Obstruction Light
compliant with ICAO,FAA,CAAC
Datasheeet: AH-LI-B Low-intensity L810 Single Aviation Obstruc...
This series of products can be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole, Tower Crane, Wind Turbine, etc whose height is lower than 45m.When obstacle object is higher than 45m, this series of products can be used with Medium-intensity or high-intensity obstruction light to potentially hazardous obstructions to air traffic with a steady or flashing red safety light.
|Light intensity||≥ 32.5cd(Option 10cd,50cd,80cd,100cd)|
|Flash rate||Steady-burning mode or Flashing mode(20-60times/minute)|
|Service life of LED||≥ 100,000hours|
|Operating voltage||AC220V (option voltage,eg.AC120V,AC110V,DC48V)|
|Overall size(mm)||136 by 136 by 220|
|Installation size||3/4inch or 1 inch|
|Vertical degree||≥ 10°|
|Base||die casting aluminum|
|Emitting color||Aviation red|
1. PC material with good impact protection strength, thermal stability, high transmittance.
2. Bird spike against bird drop.
3. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4. LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5. About 96% less power than 116W incandescent light.
6. Major Maintenance Cost Saving, Surge protection device inside light.
7. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8. Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9. 3/4inch or 1inch installation size and small volume especially being suitable for telecom and flag-pole installation way.
10. There is one switch converting between Flashing mode and Steady-burning way.
11. Five Years Warranty Period.
Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website: www.annhung.com www.ahicao.com
