Bidirectional Threshold End Runway Edge Lighting Heliport Inset 100cd Intensity
Product Details
| Type: | Helipad Landing Lights | Operating Voltage: | AC220V, 50/60 Hz(Option Voltage,eg.AC120V,DC48V) |
|---|---|---|---|
| Light Source: | LED | Emitting Color: | Yellow/red ,yellow/green Etc. |
| Working Mode:: | Steady-burning Way | Intensity: | 100cd |
| Highlight |
portfolio landscape lighting,perimeter lighting products |
||
Product Description

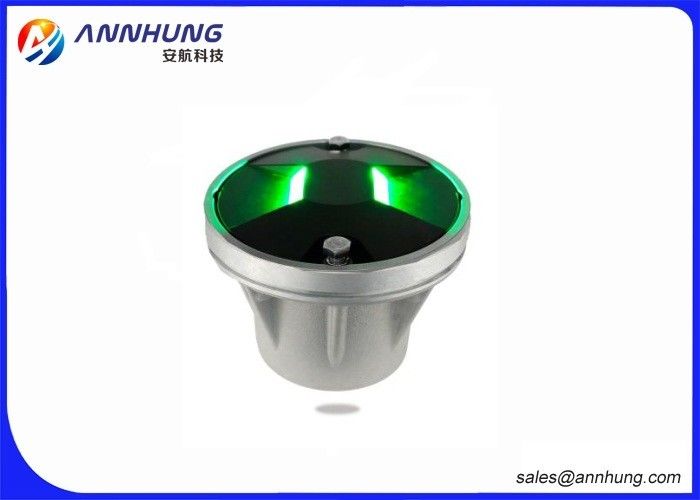

Heliport Inset Bidirectional Light Threshold End Runway Edge Light
Description
Heliport Inset bidirectional light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles. It could be used as Center Line Light, Runway Threshold/End Light, Runway Edge Lighting etc. The emitting color is green/green or yellow/red or yellow/green or red/green.
Packaging & Delivery
Packaging: Plastic bag with outer paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Function
This Light is used for shining green or yellow light to accurately indicate the threshold of taking off and landing area.
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Marine treated
Application
Helipad/Heliport Runway
Heliport Taxiway
Main Parameter
| SPECIFICATIONS | AH-HP/C Heliport Inset Bidirectional Light |
| Light Characteristics | |
| Light Source | CREE Ultra high intensity LED |
| Available Colors | Green/Green, White/Yellow, Green/Red or others |
| Intensity(cd) | ≥100cd |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics |
|
| Operating Voltage | 110-240VAC, 48VDC, 24VDC or others |
| Power(W) | 7 |
| Physical Characteristics | |
| Body Material | Anodized Die-casting aluminum |
| Base Material | Painted aluminum |
| Overall size(mm) | 194×194×138 |
| Installation size(mm) | 199×199×146 |
| Weight(kg) | 4.5 |
| Product Life Expectancy |
Average 5 years |
| Waterproof | IP68 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume ǁ Heliports 5.3 |
| Options Available | |
| Infrared LED compatible for NVG (Night | |
| Vision Goggles) | |
| Marine Treated | |
|
VHF pilot to ground remote control |
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
