Red And White Dual Aeronautical Obstruction Light , Medium Intensity Aircraft Warning Lights
Product Details
| Type: | LED Aviation Obstruction Lights | Input Voltage(V): | AC220V (option Voltage,eg.AC120V,AC110,DC48V) |
|---|---|---|---|
| Working Mode: | Flashing Mode(20times/minute(Night); 40times/minute(Daytime)) | IP Rating: | IP67 |
| Base: | Die Casting Aluminum | Emitting Color: | Red (Night); White (Daytime) |
| Ambient Temperature: | -40℃~+60℃ | Power Consumption: | 60W |
| Highlight |
led obstruction light,led aircraft warning lights |
||
Product Description
Red and White Dual Aircraft Warning Light Medium Intensity Light
This Medium-intensity Type A&B Aviation Obstruction Light flashing white color at daytime and red color at night. It’s designed for marking top of obstacle which height is between 45 to 150 meters.
Ultra high intensity CREE LED is used for the light source ensure light’s long life experience and good performance.
Product Application
Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines.
Product Descripton
| SPECIFICATIONS | AH-MI/DU Medium-intensity Type A&B Dual Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | CREE high intensity LED |
| Emitting Colors | White (Daytime); Red (Night) |
| Intensity(cd) | 20000cd±25%(Daytime) |
| 2000cd±25%(Night) | |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 3 |
| Flash Characteristics | 40FPM(flashes per minute) |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12-48VDC) or AC(110-240VAC) |
| Power(W) | 15(Daytime) |
| 10(Night) | |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Polycarbonate (High borosilicate glass |
| as optional) | |
| Base Material | Die-casting aluminum |
| Mounting | 190×190×θ12 |
| Dimension(mm) | 236×236×230 |
| Weight(kg) | 6.5 |
| Product Life Expectancy | 5 years Plus |
| Environmental Factors | |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Sixth edition 2016, table 6.3 | |
| Medium-intensity Type A White Obstacle Light | |
| Medium-intensity Type B Red Obstacle Light | |
| FAA | L-865, L-864 |
| Options Available | |
| Powder-coated color | |
| NVG(Night Vision Goggles) compatible LED | |
| GSM Cellphone Monitoring | |
|
GPS Sync Flashing |
|
| Dry Contact alarm(NO COM NC) | |
| Bird deterrent spike |
Packaging & Delivery
Packaging: Plastic bag with paper carton.
Delivery: In 2-30 days after payment.
Dimension Drawing

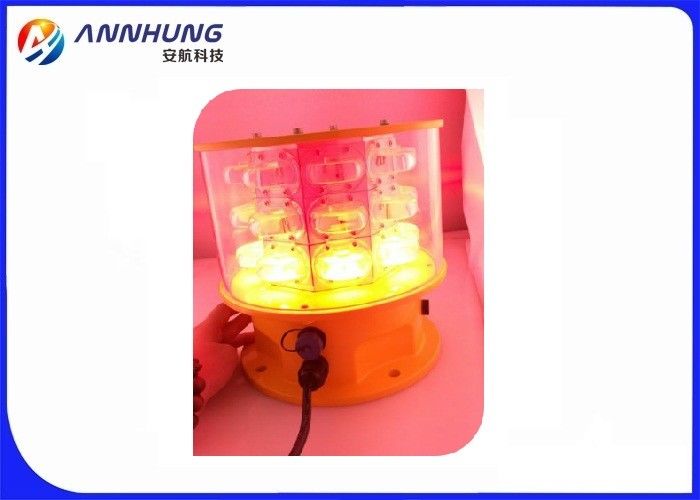

Product Picture
