Red Color Type C Aviation Warning Lights Medium-Intensity GPS Synchronization
Product Details
| Light Intensity: | 2,000cd ±25% | Light Source: | LED |
|---|---|---|---|
| Flash Frequency: | Steady-burning Mode | Lamp Body Material: | Aluminum Alloy |
| Power Rating: | 30W | Mass: | 3kg |
| Highlight |
high intensity light,aviation obstruction light |
||
Product Description
Medium-intensity Type C Aviation Obstruction Light GPS Synchronization
Scope of Application
This series of products can be used alone on the top of the high-rise building, high chimney, Telecom tower etc whose height is between 45m and 105m.When the building is higher than 105m, this series of products
can be used with Medium-intensity Type A or high-intensity obstruction light to play a warning role in otentially hazardous obstructions to air traffic flashing Red safety light.
Function
This product is the single light with Photocell. It can work at night automatically at night when ambient brightness is lower than 500cd/m2 and close during the day by photocell.
Advantages
1.light weight low wind built-in photocell and monitoring-no additional power supply
2.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
3.high accuracy light beam optical design
4.Strong anticorrosion , seismic resistance protection and UV protection.
5.Built-in circuit protect LED, extremely reliable and cost saving.
6.High Efficiency LED 60 Watts Energy Consumption.
7.The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, IMAX 15KA so that the light is suitable to harsh environment.
8.Resistant to heavy rain or storms.
9.Free maintenance and aluminum alloy Material.
10.Five year warranty
11.low power consumption and low cost of ownership.
Main Parameter
| Description | Parameter |
| Mode | AH-MI/C-1 |
| Light intensity | 2,000cd ±25% |
| Flash rate | Steady-burning mode |
| Light source | LED |
| Service lifetime of LED | ≥ 100,000hours |
|
Supply voltage |
AC220V (option voltage,eg. AC120V, AC110V, DC48V) |
| Power rating | 30W |
| Overall size(mm) | Φ220 by 233 |
| Installation size(mm) | Φ190 by M10 |
| Vertical angle | 3° |
| Horizontal angle | 360° |
| Material | |
| Housing | PC |
| Base | die casting aluminum |
| Net Weight | 3Kg |
| Emitting color | Aviation red |
| Ambient temperature | -40℃~+60℃ |
| Wind load | 80m/s |
| Protection standard | IP65 |
Compliance
l ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light
FAA L-864
Dimension Drawing

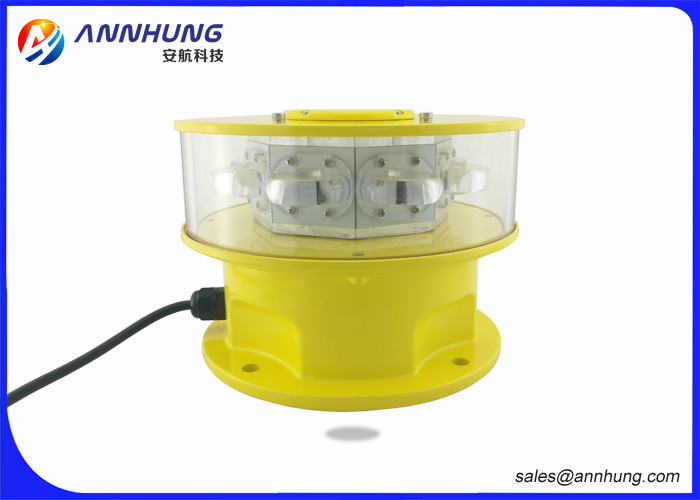

Product Picture
