Photo - Sensor LED Aviation Obstruction Light , Type A L856 Aviation Light For Towers
Product Details
| Name: | LED ICAO High Intensity Aviation Obstruction Light | Light Intensity: | 200000cd / 20000cd / 2000cd |
|---|---|---|---|
| Color: | White | Vertical Degree: | 120° |
| Standard: | ICAO, FAA L-856 | Material: | Die-casting Aluminum Alloy |
| Highlight |
tower warning lights,airplane warning lights |
||
Product Description
| Attribute | Value |
|---|---|
| Name | LED ICAO High intensity Aviation Obstruction Light |
| Light intensity | 200000cd / 20000cd / 2000cd |
| Color | White |
| Vertical degree | 120° |
| Standard | ICAO, FAA L-856 |
| Material | Die-casting aluminum alloy |

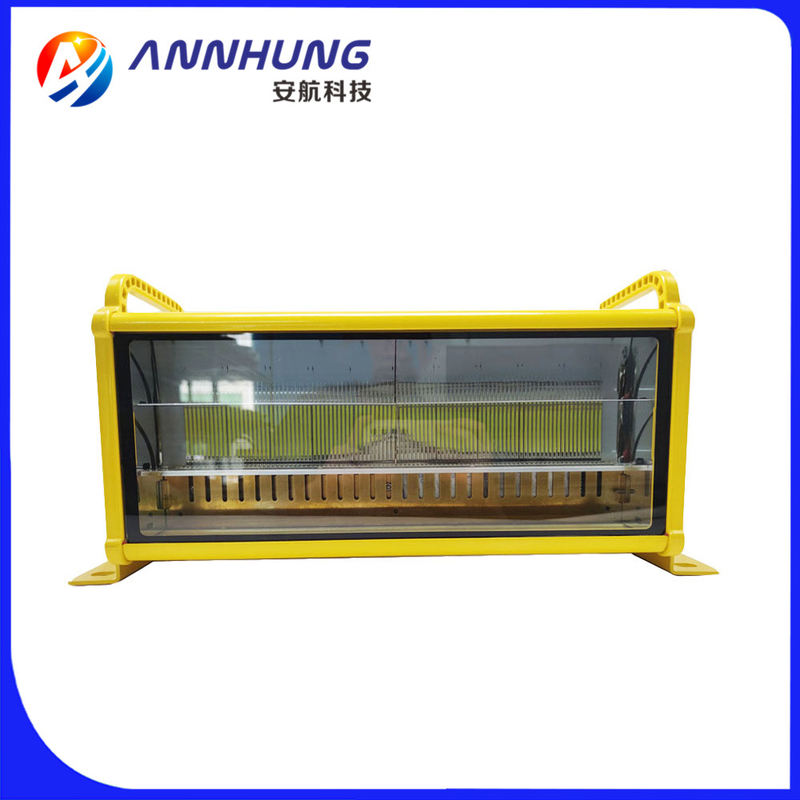

Photo-sensor High-intensity Type A L856 Aviation Obstruction Light
This High intensity Aviation Obstruction Light is a new generation that is environmental-friendly and has super long life expectancy, which consisted of fresnel lens, a lamp holder, a Microcomputer Controller, high intensity LED and photo-sensor system.
| Description | Parameter |
|---|---|
| Standard | ICAO (Aerodromes Annex 14) High-intensity Type A, FAA L-856 |
| Vertical angle | 120° |
| Light source | LED |
| Horizontal angle | 360° |
| LED emitting color | White |
| Working mode | Flash mode (40 to 60 times/minute) |
| Operating voltage | AC220V (option voltage, eg. AC120V, AC110V, DC48V) |
| LED lifetime | ≥100,000h |
| Power consumption | 100W |
| Intensity | -2,000cd (Night) -20,000cd (Twilight) -200,000cd (Daytime) |
| Operating temperature | -40℃~+60℃ |
| IP rating | IP67 |
| Net Weight | 20kg |
- Strong efficiency transmission
- International-advanced Big power and Precision integrated chip LED with high brightness and service life of light source reaching 100,000 hours
- The circuit has surge protection with lightning proof ability of 7.5KA/5 times, IMAX 15KA, suitable for harsh environments
- Strong corrosion resistance, Shock and Vibrations protection and UV protection
- Baked advance aluminum alloy Material
- Resistant to heavy rain or storms
- Automatically changing light intensity (day/twilight/night intensity operating)
- More than 91% utilizing rate of illuminating efficiency
- Perfect protection function in control circuit with automatic fault detection and recovery
- Free maintenance and aluminum alloy Material
- Five year warranty
- Low power consumption and low cost of ownership
High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine bridge, large-scale port machinery, large engineer machinery and wind turbines.
Delivery detail: within 3-20 days after receiving down payment.
Package detail: carton box inside and outside or as per customer's requirements.
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001, etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO (International Civil Aviation Organization), CAAC (Civil Aviation Administration of China), FAA (Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
