Solar Aviation Obstruction Light
>
|
| Place of Origin | Shenzhen, China |
| Brand Name | ANNHUNG |
| Certification | CE, ISO9001, ICAO |
| Model Number | AH-MS/B |

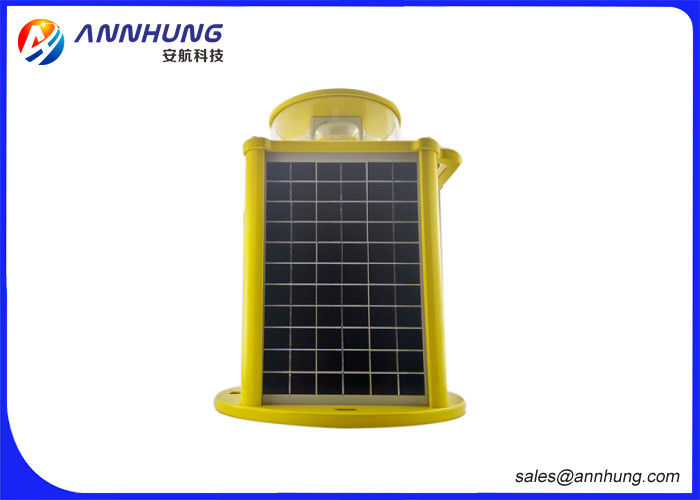

Medium-intensity Type B L864 Solar Aviation Obstruction Light
This Medium-intensity Type B Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.
GPS device is optional for AH-MS/B, it make different lights flash synchronously no matter where those lights are.
Product Descripton
| SPECIFICATIONS | AH-MS/B Medium-intensity Type B Solar Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | CREE Ultra high intensity LED |
| Available Colors | Red (Other colors are available if need) |
| Intensity(cd) | 2000cd±25% |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥3 |
| Flash Characteristics | 20-40times/minuite |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| 24hours operation as option | |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 12V DC |
| Power(W) | 24 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Monocrystalline Silicon |
| Output(watts) | 0.55 |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | VRLA( Valve Regrlater Lead Acid Battery) |
| Battery Capacity (Ah) | 12 |
| Nominal Voltage (V) | 12 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | 160hours |
| Physical Characteristics | |
| Lamb Body Material | UV protected polycarbonate |
| Base Material | Die-casting Alumimun Alloy |
| Installation Size(mm) | 220×220×12 |
| Overall Size(mm): | 260×260×310 |
| Weight(kg) | 8 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Forth edition July 2004, table 6.3 | |
| Medium-intensity Type B Obstacle Light | |
| FAA | L-864 |
| Options Available | Charging port |
| Remote Control | |
| Flashing rate adjustable(20, 30, 40, 60) | |
| NVG(Night Vision Goggles) compatitble LED | |
| GPS Synchronization | |
GSM Cellphone Monitoring |
Dimension Drawing
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Packaging & Delivery time
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
