IP67 Solar Aviation Obstruction Light With Die Casting Aluminum Lamp Body
Product Details
| Type: | LED Aviation Obstruction Lights | Working Voltage(V): | DC12V(Solar Powered Way) |
|---|---|---|---|
| IP Rating: | IP67 | Lamp Body Material: | Die Casting Aluminum |
| Color: | Red Or Customized | Working Mode:: | Steady-burning Mode Or Flash Mode(20-60times/minute) |
| Highlight |
solar airfield lighting,solar powered led flashing lights |
||
Product Description
Medium-intensity Type A L865 Solar Aviation Obstruction Light
This Medium-intensity Type A Aviation Obstruction Light flashing white color, designed for marking top of obstacle which height is between 105 to 150 meters.
Side open Stainless steel 304 material of battery box can be open for maintenance convenience very easily.
Datasheet: AH-MS-A Medium-intensity Type A L865 Solar Aviati...
Compliance
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type A Obstruction Light
FAA L-865
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Packaging & Delivery time
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
Product Descripton
| SPECIFICATIONS | AH-MS/A Medium-intensity Type A L865 Solar Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | Ultra high intensity CREE LED |
| Emitting Color | White |
| Intensity(cd) | 20000cd±25%(Daytime), 2000cd±25%(Night) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥3 |
| Flash Characteristics | Flashing 20-60FPM |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage(Vdc) | 12 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 20W |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Valve-Regulated Lead Acid Battery(VRLA) |
| Nominal Voltage (V) | 12 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | 150 |
| Physical Characteristics | |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Valve-Regulated Lead Acid Battery(VRLA) |
| Installation Size | 292×200×M10 |
| Overall Size (mm) |
515×500×360 550 |
| Weight(kg) | 15 |
| Product Life Expectancy | Average 3 years |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-45~80 |
| Humidity | 0~95% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Sixth edition July 2013, table 6.3 | |
| Medium-intensity Type A Obstacle Light | |
| FAA | L-865 |
| Optional | |
|
GPS Synchronization
|
|
|
GSM cellphone monitoring
|
|
|
NVG - compatible infrared (IR) LED
|

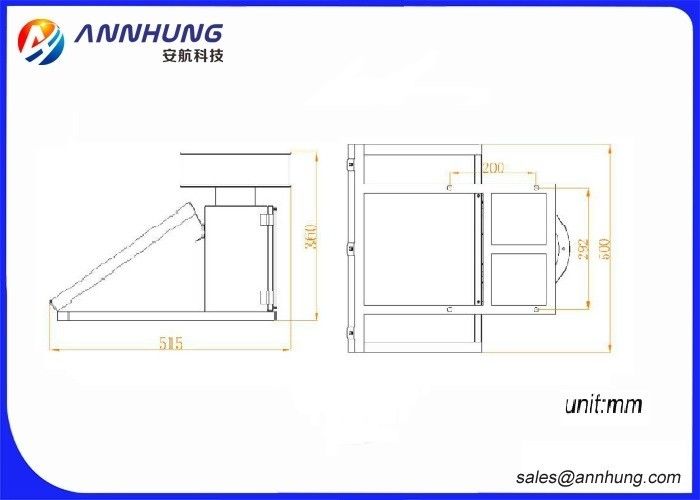

Dimension Drawing
