Low - Intensity L810 Solar Aviation Warning Lights For Wind Turbine / High Chimney
  • Low - Intensity L810 Solar Aviation Warning Lights For Wind Turbine / High Chimney
  • Low - Intensity L810 Solar Aviation Warning Lights For Wind Turbine / High Chimney

Low - Intensity L810 Solar Aviation Warning Lights For Wind Turbine / High Chimney

Place of Origin Guangdong, China
Brand Name Ahhang
Certification ICAO
Model Number AH-LS/S
Product Details
Intensity:
≥32.5cd
Emitting Color:
Red
Light Source:
LED
Supply Voltage:
DC12V
Working Mode:
Steady-burning Mode Or Flash Mode(20-60times/minute)
Power Consumption:
6W
High Light:

high intensity light

,

aviation obstruction light

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
Negotiable
Packaging Details
paper carton 1 piece/box
Delivery Time
Shipped in 15 days after payment
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000 pcs per month
Product Description



Low-intensity L810 Solar Aviation Obstruction Light for Wind Turbine / High Chimney





Aviation Obstruction Light
Aviation Light
Obstruction Light
compliant with ICAO,FAA,CAAC

Applications

Low - Intensity L810 Solar Aviation Warning Lights For Wind Turbine / High Chimney 0


Scope of Application



AH-LS/S Low-intensity Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.





Main Parameter



Description Parameter
Mode AH-LS/S
Light intensity ≥ 32.5cd
Working mode Steady-burning mode or Flash mode(20-60times/minute)
Light source LED,100,000hours service life
Supply voltage

DC12V(Solar powered Way),recyclable batteries with the

lightest environmental and long life.

Material
Housing Polycarbonate
Base SUS304 stainless steel
Autonomy(without sunlight) at least 7 days(Option 20days)
Power rating 6W
Overall Size(mm) 410 by 350 by 425
Installation Size(mm) 3/4inch
Net Weight 7Kg
Emitting Color Red
Operating Temperature -40℃~+60℃
Wind load 80m/s
IP Protection IP65





Function



AH-LS/S Low-intensity Single Solar-Powered Aviation Light has one photocell. Installed in the fuse, it can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.



Advantages



1. PC material with good impact protection strength, thermal stability, high transmittance.
2. Bird spike against bird nesting.
3. International advanced solar panel reaching at least 10 years service life.
4. Comprehensive protection in voltage short circuit, over-voltage, floating Charge and temperature.
5. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
6. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
7. Major Maintenance Cost Saving, Surge protection device inside light.
8. Strong anticorrosion , anti seismic protection and UV protection.
9. More than 7 days autonomy (optional 15days)
10. Movable Panel for being convenient for customer choosing angle.
11. 3/4 inches installation way especially for tower or flag-pole installation way.



Compliance



Low-intensity Type A or Type B FAA L-810
Low-intensity Solar-Powered Aviation Obstruction Light ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3





Dimension Drawing



Low - Intensity L810 Solar Aviation Warning Lights For Wind Turbine / High Chimney 1

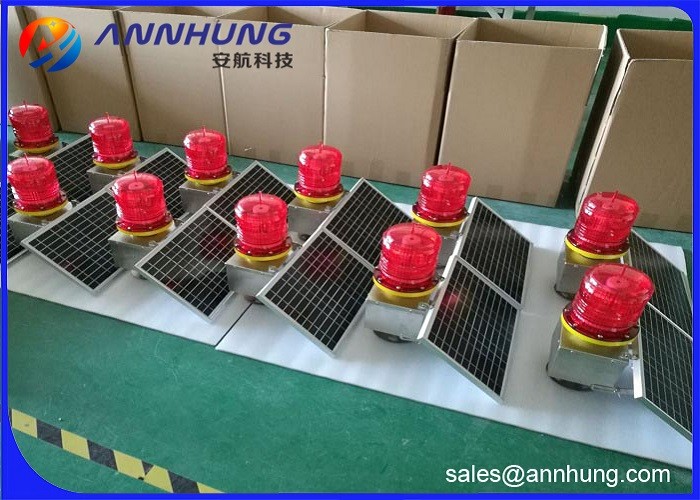

Product Picture



Low - Intensity L810 Solar Aviation Warning Lights For Wind Turbine / High Chimney 2
