Place of Origin | Shenzhen, China |
Brand Name | Annhung |
Certification | CE |
Model Number | AH-LS/B |
Low-intensity L810 Solar Aviation Obstruction Light for High Chimney
Application
AH-LS/B Low-intensity Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Details
1.Light source:LED,100,000hours service life
2.Operating voltage:DC6.4V(Solar powered Way),recyclable batteries with the lightest environmental and long life.
3. Material:
-Housing: PC
-Base: die casting aluminum
4.Autonomy(without sunlight):at least 5 days(Option 20days)
5.International advanced solar panel reaching more than 10 years service life.
6. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
7.Built-in Solar Panel.
8. Strong anticorrosion, Rain and Snow, seismic resistance protection and UV protection.
9. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
Main Parameter
1.Mode:AH-LS/B
2.Standard:ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B,FAA L-810
3.Light intensity:≥32.5cd
4.Working mode: Steady-burning mode or Flash mode(20-60times/minute)
5.Power Consumption:3W
6.Overall Size(mm): Φ220 by 233
7.Installation Size(mm): Φ190 by M10
8.Weight:2Kg
9.Emitting Color: Red
10.Ambient Temperature:-40℃~+60℃
Product Descripton
Description | Parameter |
---|---|
Standard | ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B,FAA L-810 |
Light source | LED |
LED emitting color | aviation red |
Ambient temperature | -40C ~ +60C |
Water proof | IP65 |
Net Weight | 2.0kg |
Material | Base:Die casting aluminum, housing: PC |
Dimension Drawing

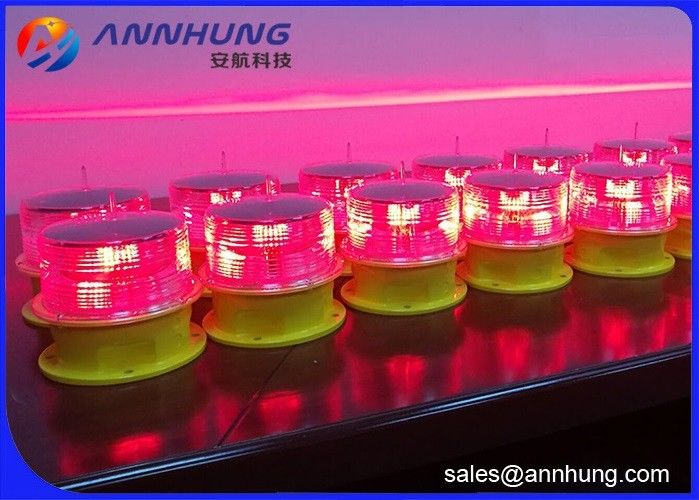

Product Picture
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
