Steady Solar Aviation Obstruction Light With Bird Needle To Prevent Bird Drop

Minimum Order Quantity : 1 pc Price : Negotiable
Packaging Details : paper carton 1 piece/box Delivery Time : Shipped in 15 days after payment
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 1000 pcs per month
Place of Origin: Guangdong, China Brand Name: Anhang
Certification: ICAO Model Number: AH-LS/DE

Detail Information

Light Intensity: 32.5cd Working Mode: Steady/Flashing(20fpm) Adjustable
Light Source: LED,100,000hours Service Life Solar Panel: Monocrystalline Silicon
Emitting Color: Red, Green, White, Yellow/ White, Yellow/ White, Yellow/ White, Red/ White( Customized) Protection Standard: IP65
High Light:

solar tower light


solar powered led flashing lights

Product Description


Low-intensity L810 Double Solar Aviation Obstruction Light FAA





 With bird needle to prevent bird drop

 UV & vibrations protected polycarbonate lens for converging light

 Stainless steel 304 base, light fastness, resist snow and rain

 Mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon

 Solar panel angel is adjustable (Vertical 15-90°)





 GSM cellphone monitoring

 Infrared LED for pilot using NVG(Night Vision Goggles)

 Remote control ON/OFF




 AH-LS/DE solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.

 Used alone on the top of obstacle which height is less than 45meter


Main parameter


SPECIFICATIONS AH-LS/DE Low-intensity L810 Double Solar Aviation Obstruction Light
Light Characteristics
Light Source LED
Emitting Color Red
Intensity(cd) 32.5cd
Horizontal Output(degrees) 360
Vertical Divergence(degrees) ≥10
Flash Characteristics Steady/Flashing(20fpm) adjustable
Operation Mode Main-standby, Dusk-to-Dawn operation
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage 12
Circuit Protection Integrated
Solar Characteristics
Solar Module Type Mono crystalline Silicon
Output(watts) 6
Charging Regulation Microprocessor controlled
Battery Characteristics
Battery type Lithium ion battery
Nominal Voltage (V) 12
Battery Service Life Average 3 years
Autonomy (hours) Steady: 80, Flashing: 200
Physical Characteristics
Lamb Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Installation Size 98×98×θ12 & 3/4inch thread
Overall Size (mm) 260×300×400
Weight(kg) 4
Product Life Expectancy Average 5 years
Environmental Factors

Ambient Temperature(℃)


Humidity 0~100%
Wind Speed 80m/s
Waterproof IP65
ICAO Annex 14 Volume 1,'Aerodrome Design and
  Operations’ Sixth edition July 2013, table 6.3
  Low-intensity Type A/B/E Obstacle Light
FAA L-810
  Wireless remote control

External battery charger



NVG - compatible infrared (IR) LED



Dimension Drawing


Steady Solar Aviation Obstruction Light  With Bird Needle To Prevent Bird Drop 0

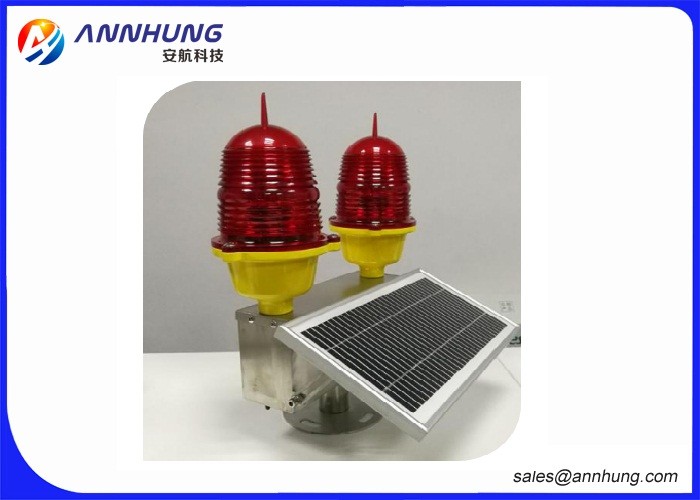

Product Picture



Steady Solar Aviation Obstruction Light  With Bird Needle To Prevent Bird Drop 1
