ICAO Aluminum 10cd 32cd Solar Aviation Obstruction Light
Contact Person : Alice
Phone Number : +86-13260726316
WhatsApp : +8613260726316
| Minimum Order Quantity : | 1 pc | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | paper carton 1 piece/box | Delivery Time : | Shipped in 15 days after payment |
| Payment Terms : | T/T, Western Union, MoneyGram | Supply Ability : | 1000 pcs per month |
| Place of Origin: | Guangdong, China | Brand Name: | Anhang |
|---|---|---|---|
| Certification: | ICAO | Model Number: | AH-MI/B-2 |
|
Detail Information |
|||
| Light Intensity: | 2000cd±25%(Night) | Working Mode: | Flashing 20-60FPM |
|---|---|---|---|
| Light Source: | LED,100,000hours Service Life | Solar Panel: | Monocrystalline Silicon |
| Emitting Color: | Red, Green, White, Yellow/ White, Yellow/ White, Yellow/ White, Red/ White( Customized) | Protection Standard: | IP65 |
| High Light: | solar tower light,solar powered led flashing lights |
||
Product Description
Flashing 20 - 60 FPM Aviation Obstruction Light Used On The Top Of High Chimney
Advantage
UV & vibrations protected polycarbonate lens for converging light
Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation
Battery: Lithium ion battery
Optional
l GPS Synchronization
l GSM cellphone monitoring
l Infrared LED for pilot using NVG
l Remote control ON/OFF
Application
l AH-MI/B-2 solar medium-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity lights light installed on the lower place.
Main parameter
| SPECIFICATIONS | AH-MI/B-2 Medium-intensity Type B L864 Solar Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | Ultra high intensity CREE LED |
| Emitting Color | Red |
| Intensity(cd) | 2000cd±25%(Night) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥3 |
| Flash Characteristics | Flashing 20-60FPM |
| Operation Mode | Dusk-to-Dawn operation(Solar panel as photocell) |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage(Vdc) | 12 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 18W |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 12 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | 120 |
| Physical Characteristics | |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Die casting aluminum |
| Installation Size | 190×190×M10 |
| Overall Size (mm) |
400×260×325 550 |
| Weight(kg) | 7 |
| Product Life Expectancy | Average 3 years |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-35~80 |
| Humidity | 0~95% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Sixth edition July 2013, table 6.3 | |
| Medium-intensity Type A Obstacle Light | |
| FAA | L-864 |
| Optional | |
|
GPS Synchronization
|
|
|
GSM cellphone monitoring
|
|
|
NVG - compatible infrared (IR) LED
|

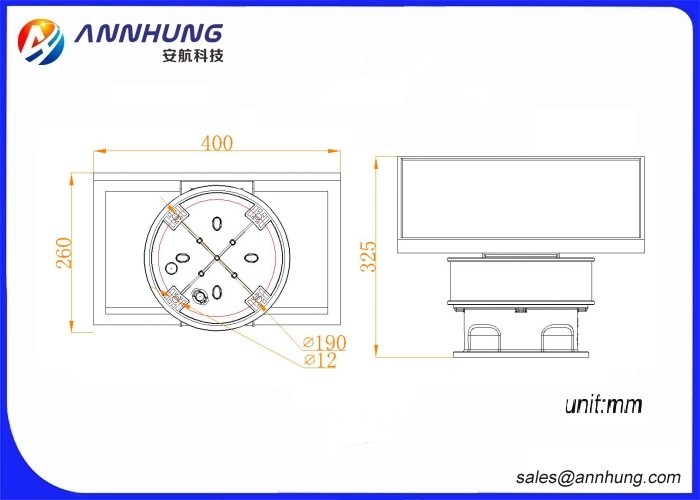

Dimension Drawing

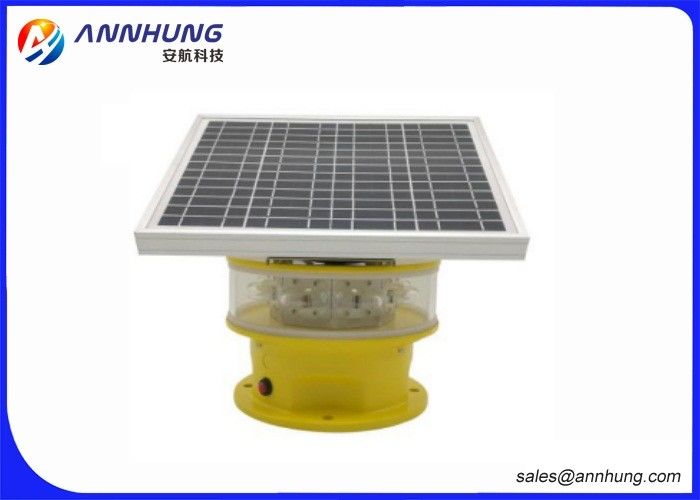

Product Picture
