AH-HP/C Heliport Inset Bidirectional Light for Heliport Taxiway and Runway
Description
Heliport Inset bidirectional light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles. It could be used as Center Line Light, Runway Threshold/End Light, Runway Edge Lighting etc. The emitting color is green/green or yellow/red or yellow/green or red/green.
Packaging & Delivery
Packaging: Plastic bag with outer paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Function
This Light is used for shining green or yellow light to accurately indicate the threshold of taking off and landing area.
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Marine treated
Application
Helipad/Heliport Runway
Heliport Taxiway
Main Parameter
| SPECIFICATIONS | AH-HP/C Heliport Inset Bidirectional Light |
| Light Characteristics | |
| Light Source | CREE Ultra high intensity LED |
| Available Colors | Green/Green, White/Yellow, Green/Red or others |
| Intensity(cd) | ≥100cd |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics |
|
| Operating Voltage | 110-240VAC, 48VDC, 24VDC or others |
| Power(W) | 7 |
| Physical Characteristics | |
| Body Material | Anodized Die-casting aluminum |
| Base Material | Painted aluminum |
| Overall size(mm) | 194×194×138 |
| Installation size(mm) | 199×199×146 |
| Weight(kg) | 4.5 |
| Product Life Expectancy |
Average 5 years |
| Waterproof | IP68 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume ǁ Heliports 5.3 |
| Options Available | |
| Infrared LED compatible for NVG (Night | |
| Vision Goggles) | |
| Marine Treated | |
|
VHF pilot to ground remote control |

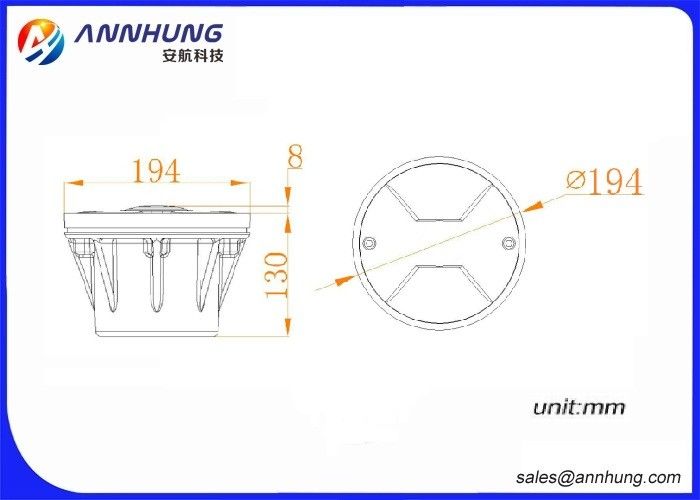

Dimension Drawing
