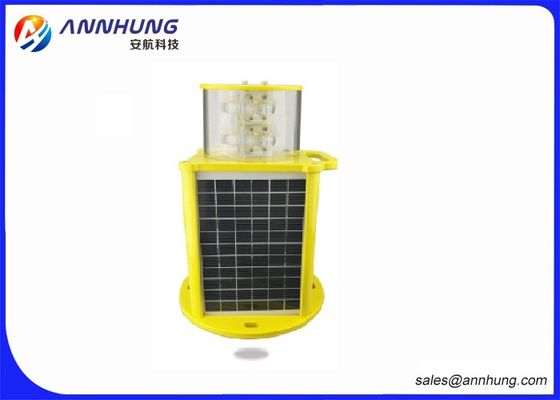

Type B Medium Intensity Solar Aviation Obstruction Light With 360 Degrees Horizontal Output
Product Details
| Type: | LED Aviation Obstruction Lights | Working Voltage(V): | DC12V(Solar Powered Way) |
|---|---|---|---|
| Lamp Power(W): | 5W*4PCS | IP Rating: | IP67 |
| Lamp Body Material: | Die Casting Aluminum | Color: | Red Or Customized |
| Working Mode:: | Steady-burning Mode Or Flash Mode(20-60times/minute) | ||
| Highlight |
solar tower light,solar powered led flashing lights |
||
Product Description
Medium-intensity Type B L864 Double Solar Aviation Obstruction Light
This Medium-intensity Type B Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.
There are two lamps in the housing, top one is the main lamp, down one is the standby lamp. When main lamp fail, standby lamp turn on automatically.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Packaging & Delivery time
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
Product Descripton
| SPECIFICATIONS | AH-MS/BD Medium-intensity Type B L864 Double Solar Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | Ultra high intensity CREE LED |
| Emitting Color | Red |
| Intensity(cd) | 2000cd±25% |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥3 |
| Flash Characteristics | Flashing 20FPM, |
| Operation Mode | Main-standby, Dusk-to-Dawn operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage(Vdc) | 12 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 6×4=24W |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Valve-Regulated Lead Acid Battery(VRLA) |
| Nominal Voltage (V) | 12 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | 150 |
| Physical Characteristics | |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Installation Size | 220×220×M10 |
| Overall Size (mm) |
260×260×355 550 |
| Weight(kg) | 9 |
| Product Life Expectancy | Average 3 years |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-45~80 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP67 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Sixth edition July 2013, table 6.3 | |
| Medium-intensity Type B Obstacle Light | |
| FAA | L-864 |
| Optional | |
|
GPS Synchronization
|
|
|
GSM cellphone monitoring
|
|
|
NVG - compatible infrared (IR) LED
|
Dimension Drawing
Product Picture
