High-intensity Type A L856 Aviation Obstruction Light FAA Standard
Product Details
| Name: | LED ICAO High Intensity Aviation Obstruction Light | Light Intensity: | 200000cd / 20000cd / 2000cd |
|---|---|---|---|
| Color: | White | Vertical Degree: | 120° |
| Standard: | ICAO, FAA L-856 | Material: | Die-casting Aluminum Alloy |
| Highlight |
tower warning lights,airplane warning lights |
||
Product Description

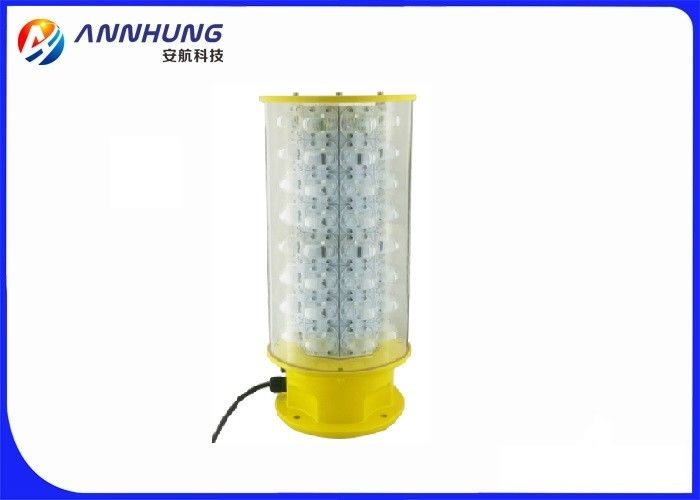

High-intensity Type A L856 Aviation Obstruction Light FAA Standard
This High-intensity Type A Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height.
Ultra high intensity CREE LED is used for the light source ensure light’s long life experience and good performance.
Self-designed reflection board ensure less LED could emitting brighter light.
Compliance
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 High Intensity Type A Obstruction Light
FAA L-856
Features
Electrical
CREE ultra high intensity LED as light source saving power
Power supply available in DC(48V) or AC(110V, 240V)
Physical
Unique design and UV protected polycarbonate lens for converging light and saving LED power
UV protection Powder coated bright yellow color base make better visibility
Base material is powder coated die-casting aluminum which has strong corrosion resistance, Shock
Optional
Alarm contact for remote monitoring
Infrared LED for pilot using NVG
GSM cellphone monitoring
RS485 communication part for monitoring
User adjustable flashing rate(40, 50, 60 flashes/minute)
GPS synchronization
Application
AH-HI/A-1 High-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity light installed on the lower place.
| SPECIFICATIONS | AH-HI/A-1 High-intensity Type A L856 Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | CREE high intensity LED |
| Flash Characteristics | 40-60 flashes per minute |
| Operation Mode | 24hours operation, 3 different modes |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(48VDC) or AC(110, 240V) |
| Average Power(W) | 40W |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Polycarbonate (Tempered glass as optional) |
| Base Material | Powder coated die-casting aluminum |
| Mounting | θ190×θ12 |
| Dimension(mm) | 236×236×430 |
| Weight(kg) | 9 |
| Product Life Expectancy | 5 years Plus |
| Environmental Factors | |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| Waterproof | IP67 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Sixth edition 2016, table 6.3 | |
| High-intensity Type A White Obstacle Light | |
| FAA | L-856 |
| Options Available | |
| NVG(Night Vision Goggles) compatible LED | |
| GSM Monitoring | |
|
GPS Sync Flashing
|
|
| Dry Contact alarm(NO COM NC) | |
| User adjustable flashing rate (40, 50, 60) |
Product Application
High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole,Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines.
Packaging & Delivery
Delivery detail: within 3-20 days after receiving down payment.
Package detail:carton box inside and outside or as per customer's requirements.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
