32cd Light Intensity Aviation Obstruction Light With Dedicated Lithium Ion Battery
Product Details
| Name: | LED Solar Low Intensity Aviation Obstruction Light | Standard: | FAA L810 ICAO ANNEX 14 |
|---|---|---|---|
| Light Intensity: | 32.5cd | Color: | Red |
| Mode: | Steady/Flashing Adjustable | Main-standby: | When Main Lamp Fail, Standby Lamp Turn On Automatically |
| Highlight |
solar tower light,solar powered led flashing lights |
||
Product Description

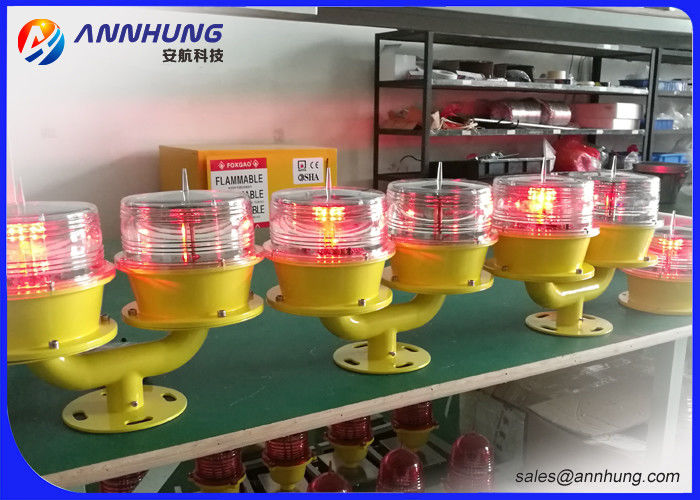

Solar Aviation Obstruction Light 32cd Low Intensity Double Light
This LED Low-intensity Solar-Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. There are two lamps on two arms, one is main lamp, another is standay. When main lamp fail, standby light turn on automatically.3/4inch thread hole underbase is very suitable for pole mounting.
Function
Solar panel inside light also act as photocell sensor.It will make
light work automatically at night when ambient brightness is lower than
500cd/m2 and close during the day
Product Descripton
| SPECIFICATIONS | AH-LS/T Low-intensity Double Solar Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red. Other colors are available if need, including IR |
| Intensity(cd) | 32.5cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | Steady & Flashing adjustable |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| 24hours operation as option | |
| Main-standby mode | |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 3.7Vdc |
| Power(W) | 1 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Monocrystalline Silicon |
| Output(watts) | 0.55 |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Battery Capacity (Ah) | 8 |
| Nominal Voltage (V) | 3.7 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | Steady: 85 |
| Flashing: 190 | |
| Physical Characteristics | |
| Lamb Body Material | Aluminum Alloy |
| Base Material | Powder-coated Die-casting aluminum |
| Installation Size(mm) | 140×140×M6 |
| Overall Size(mm) | 162 by 162 by 160 |
| Weight(kg) | 3 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Forth edition July 2004, table 6.3 | |
| FAA | Low intensity Type B FAA L-810 |
| Options Available | Charging port |
| Remote Control | |
| Flashing rate | |
| Auto/Manual toggle switch | |
| Powder-coated color | |
| NVG(Night Vision Goggles) compatitble LED |
Dimension Drawing
Packaging & Delivery
Packaging - Paper carton 1-9 piece/box.
Delivery - In 2-15 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
