Helipad Landing Lights
>
|
|
| Place of Origin | Shenzhen, China |
| Brand Name | ANNHUNG |
| Certification | CE, ISO9001, ICAO |
| Model Number | AH-HP-E1 |

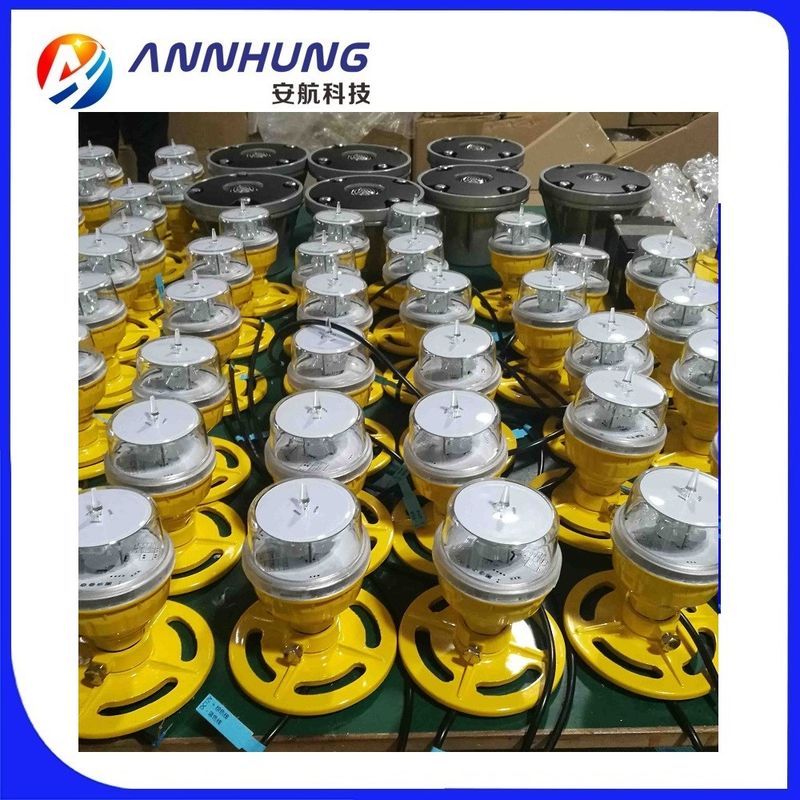

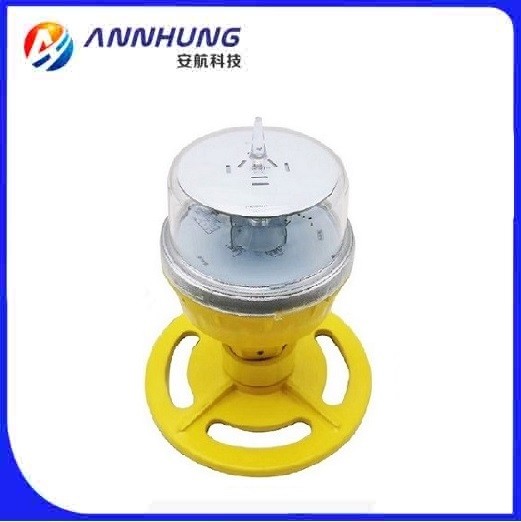

Helipad Landing Lights / Heliport Elevated Lighting White / Green / Yellow LED NVG IR LED＞50cd
Perimeter lights shall be placed along the edges of the Helipad Final approach and take-off area. It emit white or green or yellow steady burning light.
Application:
Helipad/Heliport Touch-down and Lift-off area
Heliport Aming point marking
Helideck
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.6
FAA AC 150/5390-2B Heliport Design Guide
CAP437 (Offshore helipad)
Product Descripton
| SPECIFICATIONS | AH-HP/E Heliport Perimeter Elevated Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Green, Yellow, White, Red |
| Intensity(cd) | ≥50cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12-48VDC) or AC(110-240VAC) |
| Power(W) | 7 |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 93×93×12 |
| Dimension(mm) | 136×136×145 |
| Weight(kg) | 1.4 |
| Base | Frangible coupling |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
Ambient Temperature(℃) | -55~70 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume ǁ Heliports 5.3.6 |
| Options Available | Powder-coated color |
| Infrared LED compatitble for NVG (Night | |
| Vision Goggles) | |
| Marine Treated | |
| Power coated color |
Features
Electrical
LED light source power saving consumption and maintenance working mode, 95% less power than equivalent incandescent light
Power supply available in DC(12-48VDC) or AC(110-240VAC)
Physical
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Fragile coupling reduce the secondary damage to helicopters effectively
Optional
Infrared LED for pilot using NVG
Controller for power supplying and turn ON/OFF light
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Datasheet download: download AH-HP-E1 LED Heliport Elevated Light.pdf
