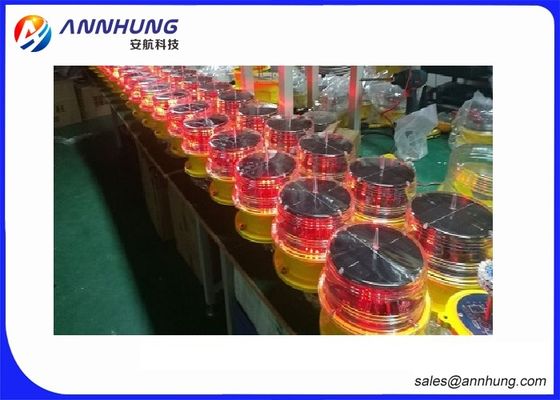

LED Solar Red Obstruction Light , 10cd Low Intensity Aircraft Warning Light IP68

Brand Name: ANNHUNG
Model Number: AH-LS/L
Place of Origin: Shenzhen, China
Certification: CE, ISO9001, ICAO
Minimum Order Quantity: 1 Piece
Price: Negotiable
Supply Ability: 1000 pieces per month

Product Details


Name: LED Solar Low Intensity Red Aviation Obstruction Light 10cd Low Intensity Emitting Color: Red
Light Intensity: 10cd, 32.5cd Standard: ICAO Annex 14, FAA L-810
Solar Panel: Mono Crystalline Silicom Battery: Lithium Ion Battery
Highlight

solar tower light

,

solar powered led flashing lights

Product Description

LED Solar Red Obstruction Light , 10cd Low Intensity Aircraft Warning Light IP68



This LED Low-intensity Solar-Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply.



It is designed for marking top of obstacle that do not exceed 45 meters in height.



Product Descripton



SPECIFICATIONS AH-LS/L Low-intensity Solar Powered Aviation Obstruction Light
Light Characteristics
Light Source LED
Available Colors Red. Other colors are available if need, including IR
Intensity(cd) 10cd(Steady), 32.5cd(Flashing)
Horizontal Output(degrees) 360
Vertical Divergence(degrees) ≥10
Flash Characteristics Steady & Flashing adjustable
Operation Mode Dusk-to-dawn Automatically as standard.
  24hours operation as option
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage 3.7Vdc
Power(W) 1
Circuit Protection Integrated
Solar Characteristics
Solar Module Type Monocrystalline Silicon
Output(watts) 0.55
Charging Regulation Microprocessor controlled
Battery Characteristics
Battery type Lithium ion battery
Battery Capacity (Ah) 6
Nominal Voltage (V) 3.7
Battery Service Life Average 3 years
Autonomy (hours) Steady: 60
  Flashing: 150
Physical Characteristics
Lamb Body Material Aluminum Alloy
Base Material Powder-coated Die-casting aluminum
Installation Size(mm) 140×140×M6
Overall Size(mm) 162 by 162 by 160
Weight(kg) 1
Product Life Expectancy Average 5 years
Environmental Factors
Humidity 0~100%
Wind Speed 80m/s
Waterproof IP68
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and
  Operations’ Forth edition July 2004, table 6.3
FAA Low intensity Type B FAA L-810

Options Available Charging port
  Remote Control
  Flashing rate
  Auto/Manual toggle switch
  Powder-coated color
  NVG(Night Vision Goggles) compatitble LED



Dimension Drawing



LED Solar Red Obstruction Light , 10cd Low Intensity Aircraft Warning Light IP68



Product Application



-Factory

-Power Plant Chimneys

-Television Tower

-Port, Bridges

etc.



Packaging & Delivery



We usually pack it with plastic bag and standard export carton and deliver it within 2 to 20 days after receiving the payment according to the quantity.



After-sales service



1. 2 years full warranty, 5 years maintenance since the purchasing date.

2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.



Product Highlights

LED Solar Red Obstruction Light , 10cd Low Intensity Aircraft Warning Light IP68 This LED Low-intensity Solar-Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. It is designed for ...
