Low Intensity Aeronautical Obstruction Light Solar Powered For Marking Tower

Minimum Order Quantity : 1 PC Price : Negotiable
Packaging Details : paper carton 1 piece/box Delivery Time : Shipped in 15 days after payment
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 1000 pcs per month
Place of Origin: Guangdong, China Brand Name: Ahhang
Certification: ICAO Model Number: AH-LS/S

Detail Information

Intensity: ≥32.5cd Emitting Color: Red
Light Source: LED Supply Voltage: DC12V
Working Mode: Steady-burning Mode Or Flash Mode(20-60times/minute) Power Consumption: 6W
High Light:

solar tower light


solar powered led flashing lights

Product Description


Low Intensity Aeronautical Obstruction Light Solar Powered For Marking Tower


Aviation Obstruction Light
Aviation Light
Obstruction Light
compliant with ICAO,FAA,CAAC

Scope of Application

AH-LS/S Low-intensity Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.



Main Parameter


Description Parameter
Mode AH-LS/S
Light intensity ≥ 32.5cd
Working mode Steady-burning mode or Flash mode(20-60times/minute)
Light source LED,100,000hours service life
Supply voltage

DC12V(Solar powered Way),recyclable batteries with the

lightest environmental and long life.

Housing Polycarbonate
Base SUS304 stainless steel
Autonomy(without sunlight) at least 7 days(Option 20days)
Power rating 6W
Overall Size(mm) 410 by 350 by 425
Installation Size(mm) 3/4inch
Net Weight 7Kg
Emitting Color Red
Operating Temperature -40℃~+60℃
Wind load 80m/s
IP Protection IP65





AH-LS/S Low-intensity Single Solar-Powered Aviation Light has one photocell. Installed in the fuse, it can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.





1. PC material with good impact protection strength, thermal stability, high transmittance.
2. Bird spike against bird nesting.
3. International advanced solar panel reaching at least 10 years service life.
4. Comprehensive protection in voltage short circuit, over-voltage, floating Charge and temperature.
5. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
6. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
7. Major Maintenance Cost Saving, Surge protection device inside light.
8. Strong anticorrosion , anti seismic protection and UV protection.
9. More than 7 days autonomy (optional 15days)
10. Movable Panel for being convenient for customer choosing angle.
11. 3/4 inches installation way especially for tower or flag-pole installation way.




Low-intensity Type A or Type B FAA L-810
Low-intensity Solar-Powered Aviation Obstruction Light ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3



Dimension Drawing


Low Intensity Aeronautical Obstruction Light Solar Powered For Marking Tower 0

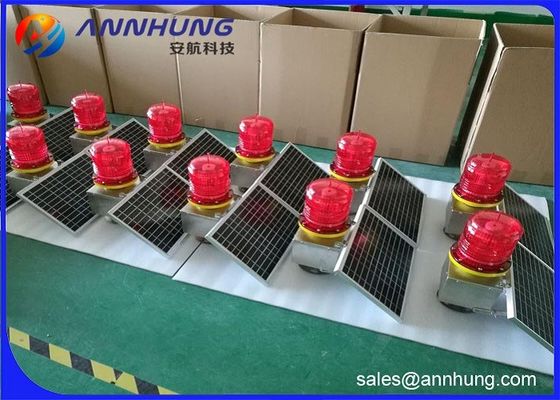

Product Picture


Low Intensity Aeronautical Obstruction Light Solar Powered For Marking Tower 1
