| Place of Origin | Shenzhen, China |
| Brand Name | Annhung |
| Certification | CE |
| Model Number | AH-MI/E |

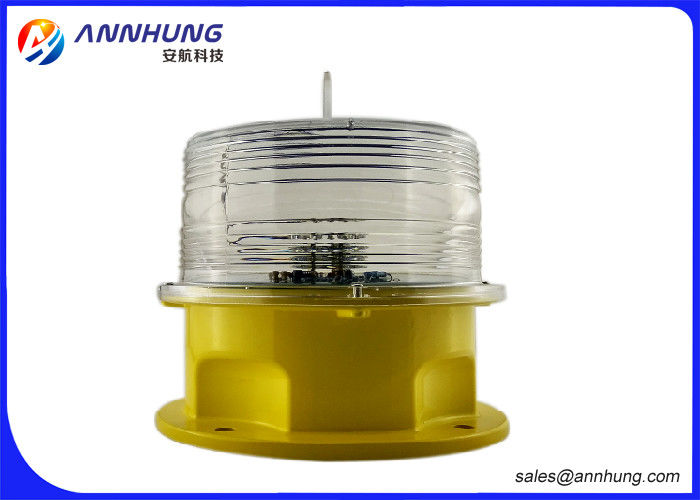

AH-MI/E LED Aviation Obstruction Light Medium-intensity Type B
AH-MI/E is used on high rise buildings or structures with height between 45 to 105 meters, It could be used solely or together with low intensity type to provide a warning signal. Also, it could be used together with medium intensity type A aviation obstruction light or high intensity aviation obstruction light on buildings or structures whose height are higher than 105 meters. The house of the light is made of die casting aluminum and painted by spraying plastics finish. It is light, good ability of heat release, waterproof, impact resistance, corrosion resistance etc..
Key features
1. Lamp shade of the light adopts PC which is quite high impact resistance, hot resistance, high efficiency light transmission up to 90%, anti-UV, aging resistance, ignitability rate UL-94V0.
2. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment.
Product Application area
High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole,Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines.
Packaging & Delivery time
Packaging: Plastic bag with paper carton.
Delivery: In 2-30 days after payment.
After-sales service
Our products enjoy 5 years warranty since the purchasing date.
1.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
2.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Standard | ICAO (Aerodromes Annex 14) Medium-intensity Type B and FAA L-864 |
| Vertical degree | 3° |
| Light source | LED |
| Horizontal degree | 360° |
| LED color | Aviation red |
| Working mode | Flashing mode(20-60times/minute, ICAO standard; 20 to 40times/minute, FAA standard) |
| Operating temperature | -40℃~+60℃ |
| IP Protection | IP65 |
| Weight | 3.0kg |
| Material | Base:Die casting aluminum, housing: PC |
