Solar Powered Aviation Lights
>
|
|
| Place of Origin | China |
| Brand Name | ANNHUNG |
| Certification | CE |
| Model Number | AH-MI-B2(L) |

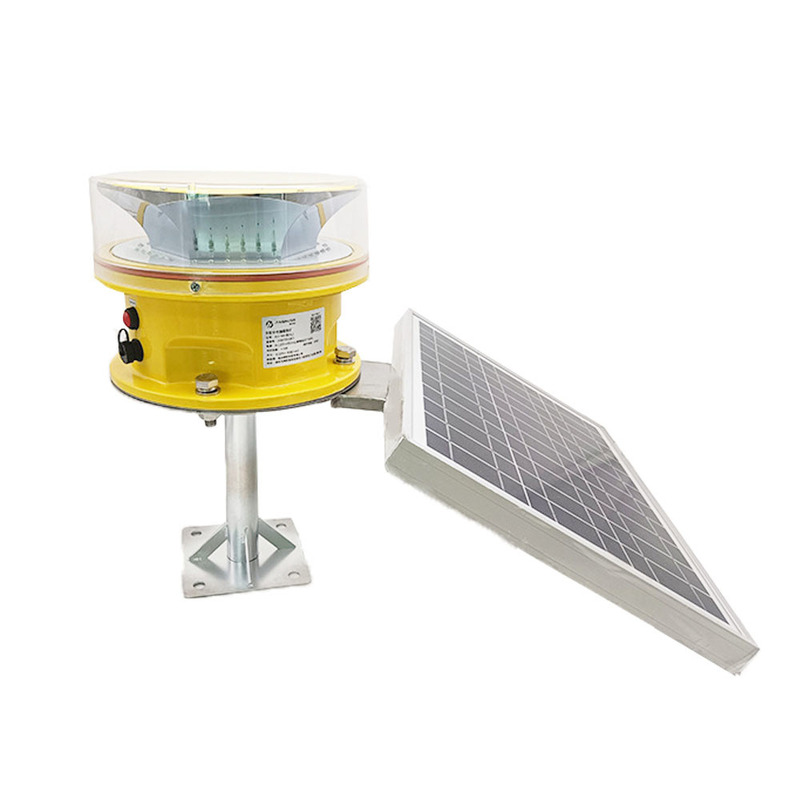

AH-MI-B2(L) LED Solar Powered Medium-intensity Aviation Obstruction Light
This LED Medium-intensity Aviation Obstruction Light emitting red color(white color is optional), designed for marking top of obstacle which height is more than 45meters.
Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B / C Obstruction Light
FAA L-864, FAA L-885
CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards
Features
Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Physical
Unique design and UV protected polycarbonate reflector for converging light
UV protection Powder coated bright yellow color base make better visibility
Self-contained without external power supply, Cable cost saving & cabling job saving, nice & easy installation
Battery: Lithium ion battery for long life
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
GPS devide inside for flashing synchronously
Optional
Dry contact Alarm output for remote monitoring
Other Flashing rate(20, 30, 40, 60, Steady mode)
Infrared LED for pilot using NVG
IOT Monitoring
Sequentially flash
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
20FPM |
| Operation Mode |
Dusk-to-dawn Automatically as standard. |
| LED Life Experience(hours) | >100,000 |
|
Battery type |
Lithium ion battery |
|
Nominal Voltage (V) |
12 |
| Mounting |
190×190×θ12(No solar power system) |
| Dimension(mm) |
229×229×168(No solar power system) |
| Weight(kg) |
2.5 (No solar power system) |
| Ambient Temperature(℃) |
-55~55 |
| Humidity | 10%-95%RH(No condensation) |
| Wind Speed |
240Km/h |
| Waterproof | IP66 |
| Options Available |
NVG(Night Vision Goggles) compatible LED |
