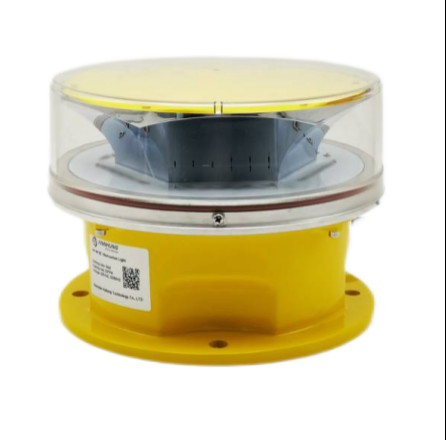

FAA L864 LED Aviation Obstruction Light IP68 Waterproof with 100,000 Hours LED Life ICAO FAA CAAC Compliant
Product Details
| Light Source: | LED | AIP Rating: | IP68 |
|---|---|---|---|
| OLamb Body Material: | UV Protected Polycarbonate | LED Life Experience(hours): | >100,000 |
| Input Voltage(V): | DC(12V, 48VDC) Or AC(110-240VAC) Or Others | Body Material: | Body Material |
| Highlight |
FAA medium intensity obstruction light,LED l864 obstruction light,ICAO aircraft warning lights for buildings |
||
Product Description
Medium-intensity Type B Aviation Obstruction Light compliant with ICAO, FAA, and CAAC standards. Designed for reliable aircraft warning and safety applications.
This product series is suitable for installation on various structures including:
- High-rise buildings
- High chimneys
- Communication towers (Telecom, GSM, Microwave & TV)
- High poles
- Tower cranes
- Wind turbines
For structures between 45m and 105m in height. For obstacles exceeding 105m, this product can be used in combination with Medium-intensity Type A or high-intensity obstruction lights.
| Description | Parameter |
|---|---|
| Model | AH-MI-B2 |
| Light Intensity | 2,000cd ±25% |
| Flash Rate | 20-60 times/minute (ICAO standard), 20-40 times/minute (FAA standard) |
| Light Source | LED |
| LED Service Life | ≥ 100,000 hours |
| Operating Voltage | AC220V (optional: AC120V, AC110V, DC48V) |
| Power Consumption | 20W |
| Overall Size | Φ229 × 168 mm |
| Installation Size | Φ190 × M10 mm |
| Vertical Degree | 3° |
| Horizontal Degree | 360° |
| Housing Material | PC |
| Base Material | Die casting aluminum |
| Weight | 2.5Kg |
| Emitting Color | Aviation red |
| Ambient Temperature | -40℃ to +60℃ |
| Wind Load | 80m/s |
| Protection Standard | IP68 |
- Stand-alone design with integrated photocell, power supply flasher, and monitoring
- Integrated automatic flash synchronization beam optical design
- High accuracy light beam optical design
- High borosilicate glass material with excellent thermal stability and high transmittance
- Built-in circuit protection for LED reliability and cost savings
- Shockproof and corrosion resistant for use in demanding conditions
- Special red LED color for aviation obstruction lighting
- Resistant to heavy rain and storms
- Maintenance-free aluminum alloy construction
- Five-year warranty
- Low power consumption and ownership cost
This product features an integrated photocell that automatically activates at night when ambient brightness falls below 500cd/m² and deactivates during daylight hours.
Medium-intensity Type A and FAA L-864 compliant. Meets ICAO Annex 14 Volume 1, 'Aerodrome Design and Operations' Fourth Edition July 2004, Table 6.3 requirements.
Shenzhen Anhang Technology Company Limited is a high-technology enterprise specializing in research, production, sales, and after-sales services for aviation obstruction lights, aircraft warning lights, helipad lights, LED marine lanterns, LED bulbs, and aircraft warning spheres.
As a domestic market leader in navigation lights and supporter of green and safe emissions, our products are widely used in civil airports, helipads, communication towers, factories, power plant chimneys, television towers, ports, bridges, high-rise buildings, and marine buoyage.
