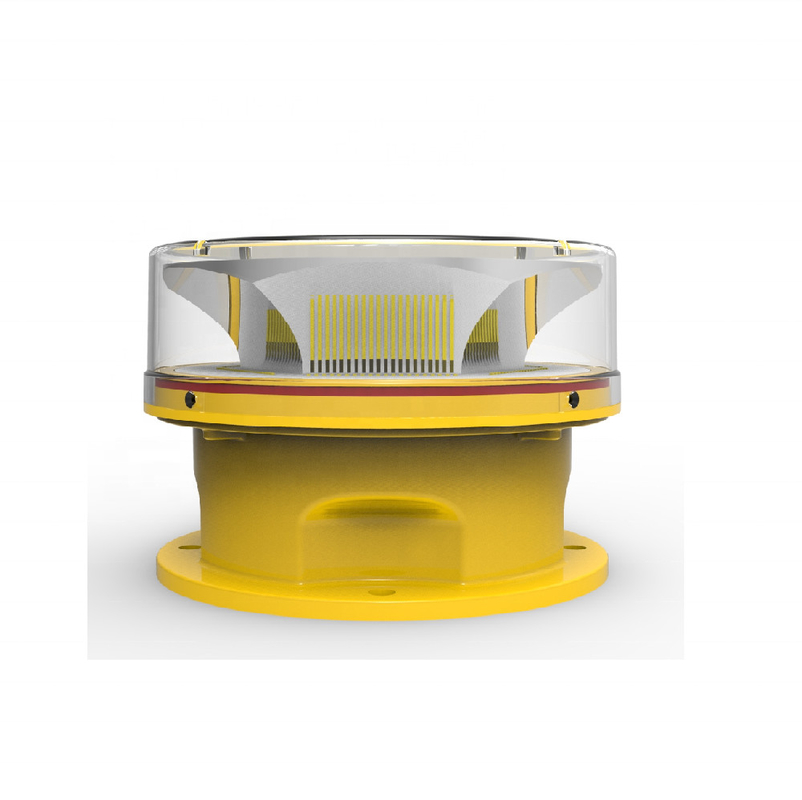

LED Aviation Obstruction Light
>
|
|
| Place of Origin | China |
| Brand Name | Annhumg |
| Certification | FAA |
| Model Number | AH-MI-B2(L) |
Compliance
l ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B / C Obstruction Light
l FAA L-864, FAA L-885
l CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards
Features
Electrical
l CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Physical
l Unique design and UV protected polycarbonate reflector for converging light
l UV protection Powder coated bright yellow color base make better visibility
l Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
l Special vent installed under base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high, to avoid the High pressure steam goes inside.
l Self-contained without external power supply, Cable cost saving & cabling job saving, nice & easy installation
l Battery: Lithium ion battery for long life
System design
l Built-in photocell for day/night operation(dusk to dawn operation)
l Surge and lightning protection
l GPS devide inside for flashing synchronously
Optional
l Dry contact Alarm output for remote monitoring
l Other Flashing rate(20, 30, 40, 60, Steady mode)
l Infrared LED for pilot using NVG
l IOT Monitoring
l Sequentially flash
| SPECIFICATIONS | AH-MI-B2(L) LED Solar Powered Medium-intensity Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | CREE high intensity LED |
| Available Colors | Red(Other color is optional) |
| Intensity(cd) | ≥2000cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 3 |
| Flash Characteristics | 20-60FPM - Type B (factory setting: 20FPM) |
| Steady mode - Type C | |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage(Vdc) | 12 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 20W |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery ( VRLA is optional) |
| Nominal Voltage (V) | 12V |
| Battery Capacity | 12AH (others is customized) |
| Autonomy (hours) | ≥180hours(20FPM, Longer is optional) |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting(mm) | 190×190×θ12(No solar power system) |
| Dimension(mm) | 229×229×168(No solar power system) |
| Weight(kg) |
2.5 (No solar power system)
|
| Product Life Expectancy | >10years (Battery 3-5years) |
| Environmental Factors | |
|
Ambient Temperature(℃)
|
-55~55 |
| Storage temperature(℃) | -55~70 |
| Humidity | 10%-95%RH(No condensation) |
| Wind Speed | 240Km/h |
| Waterproof | IP66 |
| Options Available | |
| Flashing rate | |
| NVG(Night Vision Goggles) compatible LED | |
| Dry contact alarm(NO COM NC) | |
| RS485 communication | |
| Bird deterrent spike | |
| IOT monitoring |
