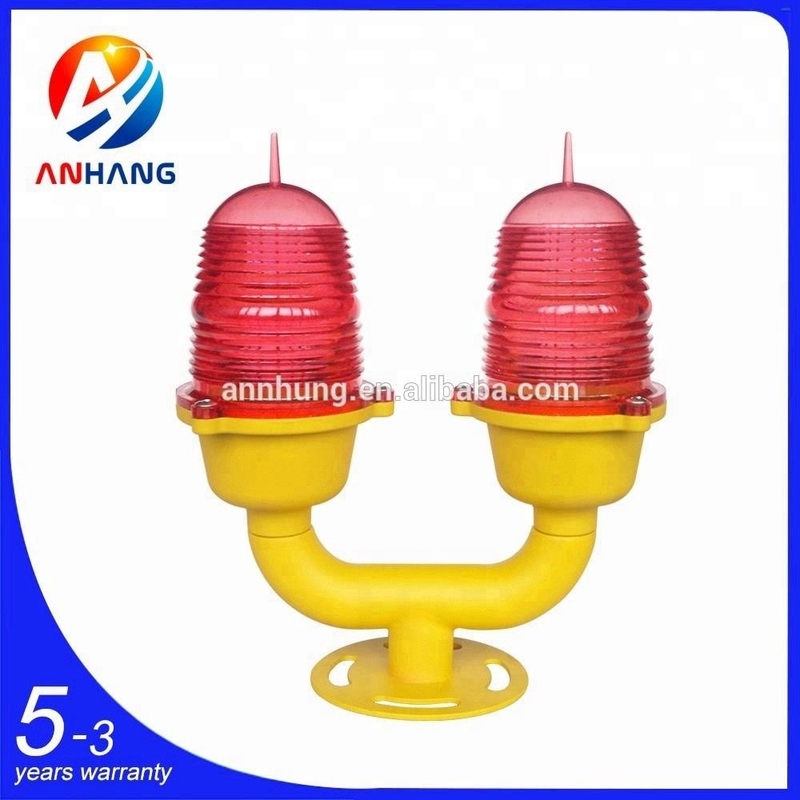

FAA LED Double Aviation Obstruction Light , Aircraft Warning Lights For Buildings
  • FAA LED Double Aviation Obstruction Light , Aircraft Warning Lights For Buildings

FAA LED Double Aviation Obstruction Light , Aircraft Warning Lights For Buildings

Place of Origin China
Brand Name Annhumg
Certification Compliant with ICAO,FAA,CAAC
Model Number AH-LS-A1
Product Details
Light Intensity:
>32.5cd
Flash Rate:
Steady/Flashing(20fpm)adjustable
Light Source:
LED
Service Life Of LED:
≥ 100,000hours
High Light:

FAA led tower obstruction light

,

CAAC aircraft warning lights on towers

,

Aircraft Warning Lights For Buildings

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$120.00 - $350.00/ Piece
Packaging Details
1piece in 1 carton
Delivery Time
3-15days
Payment Terms
L/C, Western Union, MoneyGram,
Supply Ability
3000 Piece/Pieces per Month ICAO Annex 14 FAA L-810
Product Description
Specification

Aircraft warning light. LED airport lamp. medium intensity. red Steady-burning obstruction beacon. compliant with ICAO,FAA,CAAC

Advantages

1. PC material with good impact protection strength, thermal stability, high transmittance.
2. Bird spike against bird drop.
3. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4. LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5. About 96% less power than 116W incandescent light.
6. Major Maintenance Cost Saving, Surge protection device inside light.
7. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8. Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9. Free maintenance and 3/4 inch or 1inch installation size being suitable for flag-pole or tower installation way.
10. There is one switch converting between Flasing mode and Steady-burning mode.
11. Five Years Warranty Period.

Applications



This series of products can be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole, Tower Crane, Wind Turbine, etc whose height is lower than 45m.When obstacle object is higher than 45m, this series of products can be used with Medium-intensity or high-intensity obstruction light to potentially hazardous obstructions to air traffic with a steady or flashing red safety light.



Product Description

AH-LI/D Low-intensity Double Aviation Obstruction Light/telecom tower light/warning light



Main Parameter

Description Parameter
Mode AH-LI/D
Light intensity ≥ 32.5cd(Option 10cd,50cd,80cd,100cd)
Flash rate Steady-burning mode or Flashing mode(20-60times/minute)
Working way of two lights

Two light flashing by Main(duty)-standby way, Two lights flashing at the same time or two lights

flashing 1.5 second interval.Flash mode, three ways) Two light

working by Main(duty)-standby way, Two lights working at the same time.(Steady-burning way,two ways)

Light source LED
Service life of LED ≥ 100,000hours
Operating voltage AC220V (option voltage, eg. AC120V, AC110V, DC48V)
Power consumption 4W
Overall size(mm) 258 by 136 by 320
Installation size 3/4inches or 1 inches
Vertical degree ≥ 10°
Horizontal degree 360°
Material
Housing PC
Base die casting aluminum
Weight 2Kg
Emitting color Aviation red
Ambient temperature -40℃~+70℃
Wind load 80m/s
Protection standard IP65



Function

This product is the double light with Photocell. It can work at night and close during the day automatically by photocell. There are two lights. Main-standby way. One works, the other is for standby. When main light is broken, standby light can work automatically.







Compliance

Low-intensity Type A or Type B FAA L-810
Low Intensity Double Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3

Installation Drawing

AH-LI/D Low-intensity Double Aviation Obstruction Light/telecom tower light/warning light



Production Flow Char

AH-LI/D Low-intensity Double Aviation Obstruction Light/telecom tower light/warning light
