ICAO Solar Powered Medium Intensity Aviation Obstruction Light
  • ICAO Solar Powered Medium Intensity Aviation Obstruction Light
  • ICAO Solar Powered Medium Intensity Aviation Obstruction Light

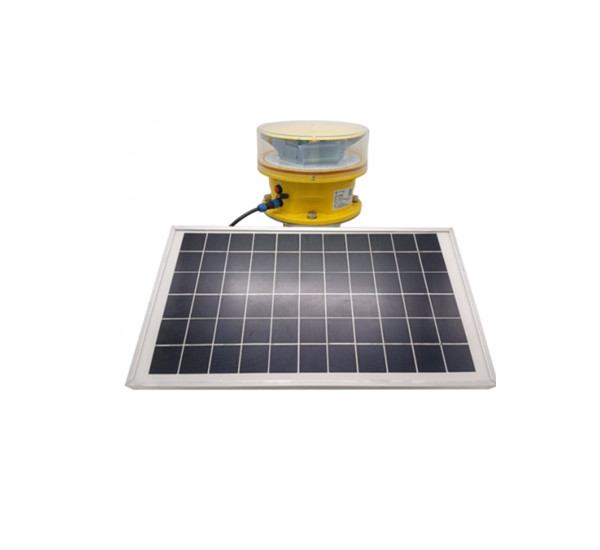

ICAO Solar Powered Medium Intensity Aviation Obstruction Light

Place of Origin China
Brand Name ANNHUNG
Certification ICAO
Model Number AH-MI-B2(L)
Product Details
Light Source:
CREE High Intensity LED
Available Colors:
Red
Intensity(cd):
≥2000cd
Horizontal Output(degrees):
360
Vertical Divergence(degrees):
3
Flash Characteristics:
20FPM
High Light:

Solar Powered Aircraft Warning Light

,

20fpm Aircraft Obstruction Light

,

2000cd Aircraft Obstruction Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
7-15 work days
Payment Terms
T/T, Western Union
Supply Ability
2000Pieces for one month
Product Description

This LED Medium-intensity Aviation Obstruction Light emitting red color(white color is optional), designed for marking top of obstacle which height is more than 45meters.

Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B / C Obstruction Light
FAA L-864, FAA L-885
CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards

Features
Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp

Physical
Unique design and UV protected polycarbonate reflector for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Self-contained without external power supply, Cable cost saving & cabling job saving, nice & easy installation
Battery: Lithium ion battery for long life

System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
GPS devide inside for flashing synchronously

Optional
Dry contact Alarm output for remote monitoring
Other Flashing rate(20, 30, 40, 60, Steady mode)
Infrared LED for pilot using NVG
IOT Monitoring
Sequentially flash


DescriptionParameter
Light SourceLED
Flash Characteristics

20-60FPM - Type B (factory setting: 20FPM)

Operation Mode

Dusk-to-dawn Automatically as standard.

LED Life Experience(hours)>100,000
Intensity(cd)
≥2000cd
Horizontal Output(degrees)360
Vertical Divergence(degrees)3

Solar Module Type

Mono crystalline Silicon

Battery type

Lithium ion battery

Body Material

UV protected Polycarbonate

Base Material

Powder-coated Die-casting aluminum

Mounting(mm)

190×190×θ12(No solar power system)

Dimension(mm)

229×229×168(No solar power system)

Waterproof

IP66


ICAO Solar Powered Medium Intensity Aviation Obstruction Light 0

Company Information


Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
