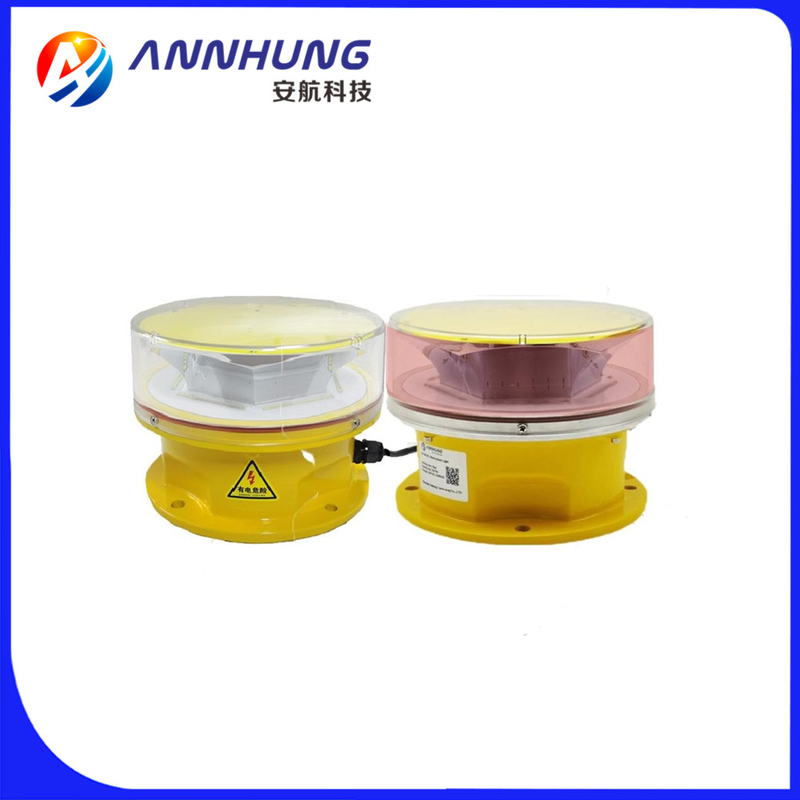

UV Protected LED Aviation Obstruction Light 20FPM Polycarbonate Reflector
  • UV Protected LED Aviation Obstruction Light 20FPM Polycarbonate Reflector
  • UV Protected LED Aviation Obstruction Light 20FPM Polycarbonate Reflector

UV Protected LED Aviation Obstruction Light 20FPM Polycarbonate Reflector

Place of Origin China
Brand Name ANNHUNG
Certification CE, RoHS,ICAO
Model Number AH-MI-A2/B2
Product Details
Light Source:
CREE High Intensity LED
Available Colors:
Red(At Night), White(Daytime)
Intensity(cd):
≥2000cd(Night), ≥20000cd(Daytime)
Flash Characteristics:
20FPM
Mounting:
190×190×θ12 - 2 Lamp
Dimension(mm):
229×229×168- 2 Lamp
High Light:

UV Protected LED Aviation Obstruction Light

,

Polycarbonate Reflector LED Aviation Obstruction Light

,

20FPM Aviation Warning Lights

Payment & Shipping Terms
Minimum Order Quantity
1PC
Packaging Details
Carton
Delivery Time
7-15work days
Payment Terms
T/T, Western Union
Supply Ability
2000Pieces for one month
Product Description

LED Dual White & Red Medium-intensity Aviation Obstruction Light 20FPM


This LED Dual White & Red Medium-intensity Aviation Obstruction Light emit red color at night, emit white color at daytime. It’s designed for marking top of obstacle which height is more than 45meters.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A / B / C Obstruction Light
FAA L-864, FAA L-885, FAA L-865
CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards

Features

Electrical

CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light
Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)

Physical

Unique design and UV protected polycarbonate reflector for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

System design

Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
GPS devide inside for flashing synchronously

Optional

Dry contact Alarm output for remote monitoring
Other Flashing rate(20, 30, 40, 60, Steady mode)
Infrared LED for pilot using NVG
IOT monitoring

Application

Dual medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low.

DescriptionParameter
Product name
LED Dual White & Red Medium-intensity
Aviation Obstruction Light
ModelAH-MI-A2/B2
Horizontal Output(degrees)
360
Vertical Divergence(degrees)
3
Operation Mode
24hours working
LED Life Experience(hours)
>100,000
Operating Voltage
DC(12V, 48VDC) or AC(110-240VAC) or others
Body Material
UV protected Polycarbonate
Base Material
Powder-coated Die-casting aluminum
Product Life Expectancy
10 years Plus
Waterproof
IP66
