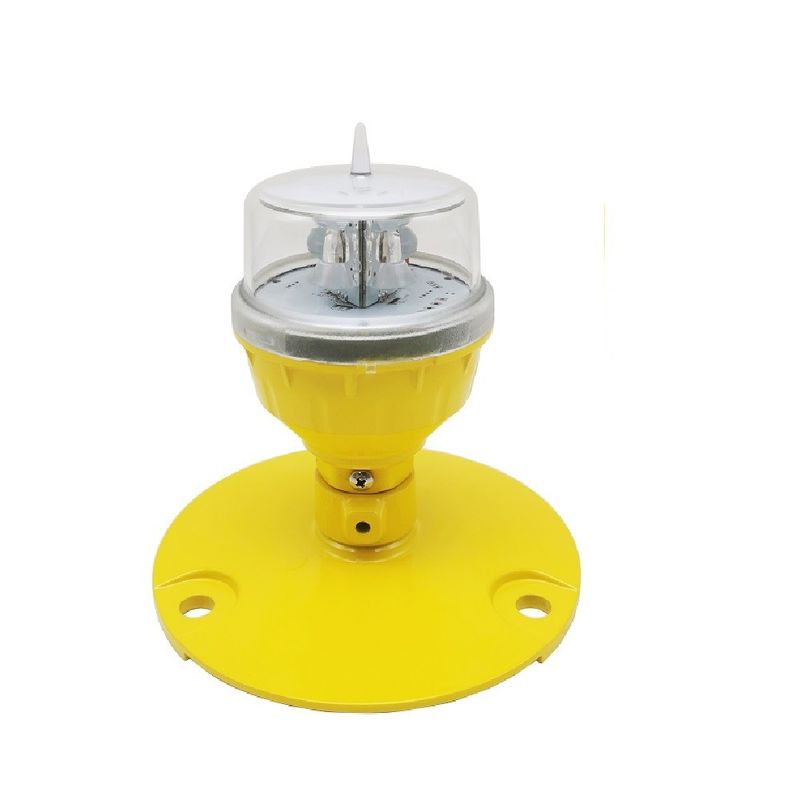

DC12V 50cd Helipad Landing Lights Steady Burning 24hrs UV Polycarbonate
Product Details
| Colors: | Green, Yellow, White, Red, Blue | Intensity(cd): | ≥50cd |
|---|---|---|---|
| Mounting: | 140×140×12 | Dimension(mm): | 165×165×170 |
| Weight(kg): | 0.7 | FAA: | FAA AC 150/5390-2B Heliport Design Guide |
| Highlight |
DC12V Helipad Landing Lights,50cd Helipad Landing Lights,UV Polycarbonate Runway Edge Light |
||
Product Description
Helipad Runway Edge Elevated Light Steady burning 24hours operation
| Description | Parameter |
Light Source | Ultra high intensity LED |
Available Colors | Green, Yellow, White, Red, Blue, IR |
Intensity(cd) | ≥50cd |
Horizontal Output(degrees) | 360 |
Vertical Divergence(degrees) | ≥10 |
LED Life Experience(hours) | >100,000 |
Operating Voltage | DC48V and AC(110-240VAC), DC12V |
Body Material | UV protected Polycarbonate |
Base Material | Powder-coated Die-casting aluminum |
Base | Frangible coupling |
Product Life Expectancy | ≥10 years |
Wind Speed | 80m/s |
Waterproof | IP66 |
FAA | FAA AC 150/5390-2B Heliport Design Guide |
Company Information
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
Product Highlights
Helipad Runway Edge Elevated Light Steady burning 24hours operation Heliport Elevated light should not exceed a height of 25cm. There is a fragile coupling in the base connection, so if aircraft hit the light by accident, the base will break immediately to avoid more damage. Compliance ICAO Annex 14 ...
120lm/W Heliport LED Flood Light White Color 110-240VAC Steady Burning
LED Surface Heliport Flood Light is used for illuminate the whole heliport area at night. It is specially designed for helipads, providing glare-free, uniform surface lighting for landing and loading activities. LED Surface Floodlights improve pilot depth perception by reflecting the surface of the ...
IP66 HAPI Polycarbonate 9000cd Helipad Landing Lights
The Helicopter Approach Path Indicator - HAPI system consists of a single lighting to provide a visual indication of the correct approaching path of the helicopter. The HAPI uses patented, LED-based optics to achieve the lowest power consumption, highest intensity and sharpest green/red transition. ...
FATO Solar Airfield Light Steady Burning Runway Edge Light White Blue Red Green Colors
AH-SA-A Serial Solar Airfield Light AH-SA-A Serial Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary airdrome. It could be used as Runway Edge Light, Taxiway Light, Threshold/End Light, Heliport Beacon, Low intensity Aviation ...
Double Obstruction Aircraft Warning Light Low Intensity L810 Aviation
AH-LI-B2 LED Low-intensity L810 Double Aviation Obstruction Light Application AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than ...
Please use our online inquiry contact form below if you have any questions, our team will get back to you as soon as possible.
