Monocrysilicon Solar LED Marine Lanterns Lithium Ion Battery For 2nm Safe Navigation
  • Monocrysilicon Solar LED Marine Lanterns Lithium Ion Battery For 2nm Safe Navigation
  • Monocrysilicon Solar LED Marine Lanterns Lithium Ion Battery For 2nm Safe Navigation
  • Monocrysilicon Solar LED Marine Lanterns Lithium Ion Battery For 2nm Safe Navigation
Monocrysilicon Solar LED Marine Lanterns Lithium Ion Battery For 2nm Safe Navigation

Monocrysilicon Solar LED Marine Lanterns Lithium Ion Battery For 2nm Safe Navigation

Place of Origin Shenzhen, China
Brand Name ANNHUNG
Certification IALA
Model Number AH-LS/C
Product Details
Visible Distance:
1-2nm
Standard:
IALA
Emitting Color:
Red, Green, White, Yellow
Solar Panel:
Monocrysilicon
Battery:
Lithium Ion Battery
Flashing Rate:
20times/minute, Others Adjustable
Highlight:

solar airfield lighting

,

led navigation lights

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
2pcs in 1 carton
Delivery Time
3-15days
Payment Terms
T/T, Western Union, Money Gram,
Supply Ability
1000pcs/month
Product Description

Red Green Solar LED Marine Lanterns for 2 nm Safe Navigation

Advantages



1.Visual range 2 Nautical Miles (Tc =0.74)
2.Based on LED technology and its color comply to IALA Recommendations E-200-1.
3.Bird spike against bird nesting.
4.Comprehensive protection in short ciruit-voltage,overload-voltage,floating charge and temperature.
5.International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6.Strong anticorrosion ,Rain and Snow,seismic resistance protection and UV protection.
7.Clean, renewable, green and reliable energy source.
8.Dusk-to-dawn operation: photocell. Light can work at night automatically by photocell.
9.More than 5 days autonomy without sunshine (Option 20days).
10.Recyclable batteries with the lightest environmental.
11.IP68 protection standard, Full sealing structure.



Product Details



SPECIFICATIONS AH-LS-C Solar Marine Navigation Lantern
Light Characteristics
Light Source LED
Available Colors Red, Green, White, Yellow
Visible Range(NM) AT@0.74: 1-2
Horizontal Output(degrees) 360
Vertical Divergence(degrees) 7
Flash Characteristics Flashing
Operation Mode Dusk-to-dawn Automatically(Built-in photocell)
LED Life-span Experience(hours) >100,000
Electrical Characteristics
Operating Voltage 3.7
Power consumption(W) 0.55
Circuit Protection Integrated
Solar Characteristics
Solar Module Type Monocrystalline Silicon
Output(watts) 0.55
Charging Regulation Microprocessor controlled
Battery Characteristics
Battery type Lithium ion battery
Battery Capacity (Ah)
Nominal Voltage (V) 3.7
Battery Service Life Average 3 years
Autonomy (hours) Steady: 60
  Flashing: 150
Physical Characteristics
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Mounting 140×140×M6
Dimension(mm) 162×162×160
Mass(kg) 1
Product Life Expectancy Average 5 years
Environmental Factors
Humidity 0~100%
Wind Speed 80m/s
IP rate IP68
Compliance
IALA Singal colors complicant to IALA E-200-1
Options Available Charging port
  Remote Control
  Flashing rate

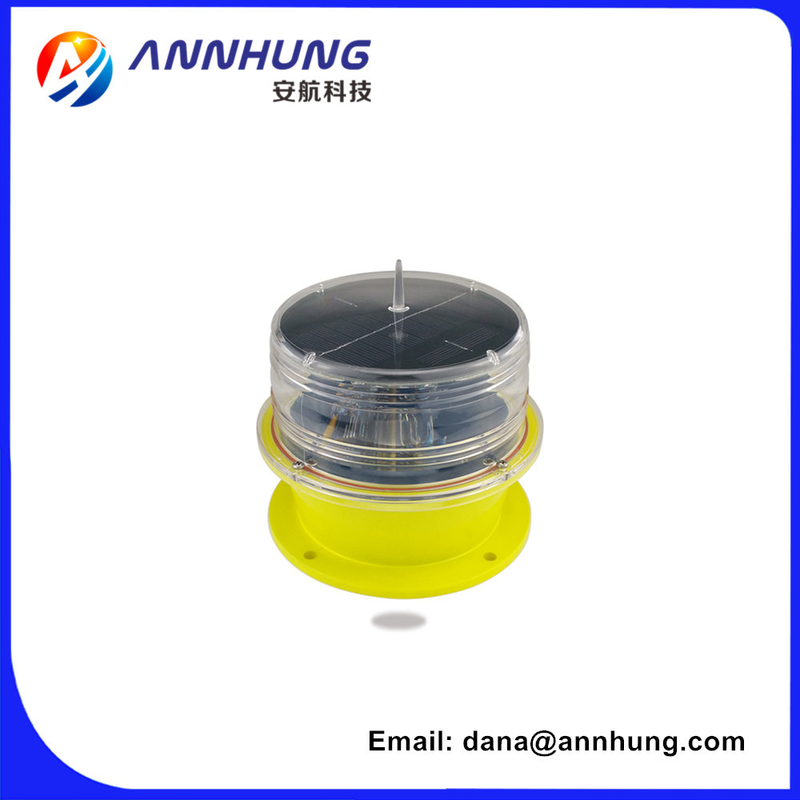

Product Picture





                 Monocrysilicon Solar LED Marine Lanterns Lithium Ion Battery For 2nm Safe Navigation 0





Company Information



Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.


All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
