Medium Intensity Portable Aviation Light FAA L864 Remote Control Obstruction Lamp
  • Medium Intensity Portable Aviation Light FAA L864 Remote Control Obstruction Lamp
  • Medium Intensity Portable Aviation Light FAA L864 Remote Control Obstruction Lamp

Medium Intensity Portable Aviation Light FAA L864 Remote Control Obstruction Lamp

Place of Origin China
Brand Name Anhang
Certification CE, RoHS
Model Number AH-MS-SD
Product Details
Horizontal Output(degrees):
360
Vertical Divergence(degrees):
≥7
Operation Mode:
Main-standby, Dusk-to-Dawn Operation
LED Life Experience(hours):
>100,000
Operating Voltage:
12
Circuit Protection:
Integrated
Output(watts):
30W
Charging Regulation:
Microprocessor Controlled
Battery Service Life:
Average 3 Years
Nominal Voltage (V):
12
Ambient Temperature(℃):
-45-65
High Light:

solar powered led flashing lights

,

solar airfield lighting

Payment & Shipping Terms
Minimum Order Quantity
1
Price
10-400
Packaging Details
Six sides build in foam carton
Delivery Time
5 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 pieces per month
Product Description

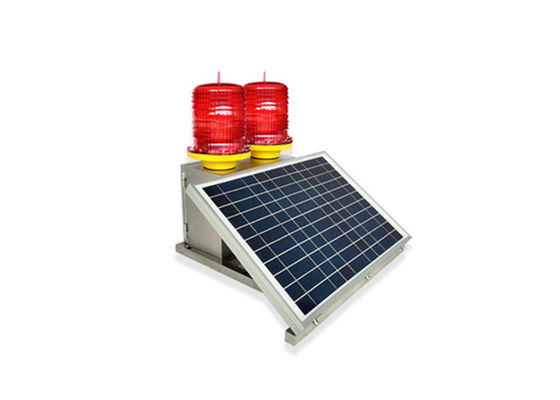

This Medium-intensity Solar Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters. (Intenational civil Aviiaion Organization Standred)
There are two lamps in the housing, one is the main lamp, the another one is the standby lamp. When main lamp fail, standby lamp turn on automatically. More safe for buildings.


Product detailed information:


Compliance
** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light
** FAA L-864

Electrical
 International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours



Physical
 UV & vibrations protected polycarbonate lens for converging light
 Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation
 Side open stainless steel battery box
 Battery: VRLA (Valve-Regulated Lead Acid Battery)



System design
 Solar panel as photocell for day & night working mode (dusk to dawn mode)
 Fuse as the ON/OFF switch is more reliable
 Main-standby mode


Optional
► GPS Synchronization
► GSM cellphone monitoring
► Infrared LED for pilot using NVG
► Remote control ON/OFF


Application
    AH-MS-SD solar medium-intensity avistion light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and mostly come with the low intensity lights which are installed at lower place. It can be moved base your request.



 More product parameter:



Light Source LED
Emitting Color Red
Intensity(cd) 2000cd±25%
Flash Characteristics Flashing 20FPM
Solar Module Type Mono crystalline Silicon
Charging Regulation Microprocessor controlled
Battery type Valve-Regulated Lead Acid Battery(VRLA)
Battery Service Life Average 3 years
Autonomy (hours) 150
Lamb Body Material UV protected Polycarbonate
Base Material Stainless steel 304
Overall Size (mm) 525*490*490
Installation Size 200*322*M10
Product Life Expectancy Average 3 years
Humidity 0~90%
Wind Speed 80m/s
Waterproof aa

Delivery:



Anhang Technology Company Limited is a specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, and have 8 years manufacturing experience for clients from whole world.
