Solar Aviation Obstruction Light
>
|
| Place of Origin | China |
| Brand Name | ANNHUNG |
| Certification | ICAO, ISO9001, CE, ROHS |
| Model Number | AH-MS-A1 |

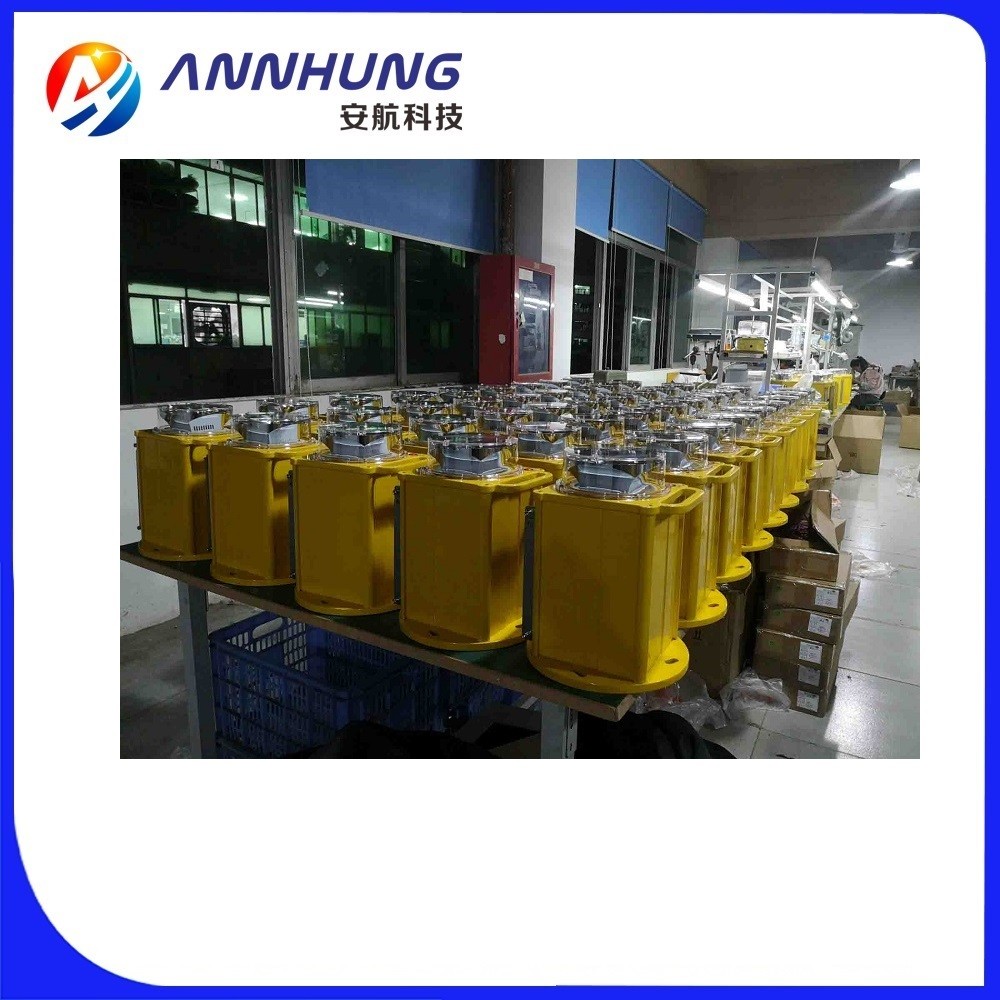

This Medium-intensity Type A Aviation Obstruction Light flashing white color, designed for marking top of obstacle which height is between 105 to 150 meters.
Ultra high intensity LED is used as light source which make performance better, and solar panel vertical degree is adjustable(10°15°20°25°30°35°40°) for get as much as sunlight in different area.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light
l FAA L-865
Features
Electrical
l Ultra high intensity CREE LED light source saving power consumption and maintenance
Physical
l UV & vibrations protected polycarbonate lens for converging light
l Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation
l Side open stainless steel battery box
l Battery: Lithium ion battery
l Solar panel vertical degree is adjustable(10°15°20°25°30°35°40°)
System design
l Solar panel as photocell for day & night working mode (dusk to dawn mode)
l ON/OFF button interface
Optional
l GPS Synchronization
l Infrared LED for pilot using NVG
Application
AH-MS-A1 solar medium-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity lights & medium intensity type B light installed on the lower place.
| SPECIFICATIONS | AH-MS-A1 Medium-intensity Type A L865 Solar Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | Ultra high intensity CREE LED |
| Emitting Color | White |
| Intensity(cd) | ≥20000cd(Daytime), ≥2000cd(Night) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥3 |
| Flash Characteristics | 40FPM |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage(Vdc) | 12 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 35W |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery(VRLA is optional) |
| Nominal Voltage (V) | 11.1V |
| Battery Capacity | 32AH (others is optional) |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | 120 |
| Physical Characteristics | |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Die casting aluminum |
| Installation Size | 200×200×M10 |
| Overall Size (mm) |
500×450×320 550 |
| Weight(kg) | 13 |
| Product Life Expectancy | Average 3 years |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-35~80 |
| Humidity | 0~95% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Seventh edition July 2016, table 6.3 | |
| Medium-intensity Type A Obstacle Light | |
| FAA | L-865 |
| Optional | |
|
GPS Synchronization
|
|
|
NVG - compatible infrared (IR) LED
|
Catalog download: download AH-MS-A1 Medium-intensity Type A L865 So...
