SHENZHEN ANHANG TECHNOLOGY CO., LTD
Email sales@annhung.com TEL: +86-755-89589401
Home > PRODUCTS > LED Aviation Obstruction Light >
32.5cd Light Intensity IP66 Waterproof LED Aviation Obstruction Light with 100,000 Hours LED Life
  • 32.5cd Light Intensity IP66 Waterproof LED Aviation Obstruction Light with 100,000 Hours LED Life
  • 32.5cd Light Intensity IP66 Waterproof LED Aviation Obstruction Light with 100,000 Hours LED Life
  • 32.5cd Light Intensity IP66 Waterproof LED Aviation Obstruction Light with 100,000 Hours LED Life
  • 32.5cd Light Intensity IP66 Waterproof LED Aviation Obstruction Light with 100,000 Hours LED Life

32.5cd Light Intensity IP66 Waterproof LED Aviation Obstruction Light with 100,000 Hours LED Life

Place of Origin Made in Shenzhen
Brand Name ANNHUNG
Certification ICAO, FAA L-810
Model Number AH-LI-B2
Document AH-LI-B2 Low-intensity L810...ht.pdf
Product Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V (option Voltage,eg.AC120V,AC110V,DC48V)
Lamp Power(W):
2.5
Lamp Luminous Flux(lm):
100%
IP Rating:
IP66
Emitting Color:
Red
Light Source:
LED
Light Intensity:
≥ 32.5cd
Working Mode:
Steady Burning Or Flashing
Highlight:

airplane warning lights

,

emergency led lights

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Packaging Details:136 by 136 by 220 paper carton 1 piece/box
Payment Terms
T/T,Western Union
Supply Ability
1000 Piece/Pieces per Month AH-LI/B Low-Intensity Single Aviation Obstruction Light Steady B
Product Description
LED Building Aircraft Aviation Obstruction Light Chimney Warning Light

Single Aviation Obstruction Light compliant with ICAO, FAA, and CAAC standards.

Download Datasheet: AH-LI-B Low-intensity L810 Single Aviation Obstruction Light
Applications

This series of products can be used alone on the top of high-rise buildings, chimneys, marking towers (telecom, GSM, microwave & TV), high poles, tower cranes, wind turbines, etc., with heights lower than 45m. When obstacle height exceeds 45m, these products can be used with medium-intensity or high-intensity obstruction lights to mark potentially hazardous obstructions to air traffic with steady or flashing red safety lights.

Technical Specifications
Mode AH-LI-B2
Light intensity ≥ 32.5cd
Flash rate Steady-burning mode or Flashing mode (20-60 times/minute)
Light source LED
Service life of LED ≥ 100,000 hours
Operating voltage AC220V (optional voltages: AC120V, AC110V, DC48V)
Power consumption 2.5W
Overall size (mm) Φ90×13
Installation size 3/4 inch
Vertical degree ≥ 10°
Horizontal degree 360°
Housing material Polycarbonate
Base material Die casting aluminum
Weight 0.3Kg
Emitting color Aviation red
Ambient temperature -40℃ to +75℃
Wind load 130m/s
Protection standard IP66
Product Advantages
  • PC material with excellent impact protection strength, thermal stability, and high transmittance
  • Bird spike protection against bird droppings
  • International-advanced cold LED technology with low power consumption, high brightness, and 100,000-hour service life
  • LED-based obstruction lights last 15 times longer than traditional incandescent light sources
  • Approximately 96% less power consumption than 116W incandescent lights
  • Major maintenance cost savings with built-in surge protection device
  • Strong corrosion resistance, shock and vibration protection, and UV protection
  • Dawn to dusk operation: Built-in photocell automatically activates lights at night and turns off during the day
  • 3/4 inch or 1 inch installation size with compact design suitable for telecom and flag-pole installations
  • Switch for converting between flashing mode and steady-burning operation

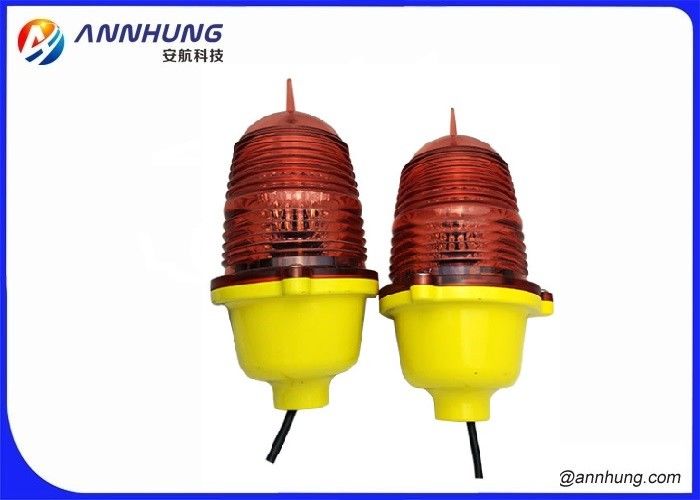

LED Aviation Obstruction Light product image
