LED Solar Aviation Obstruction Light Twin / Dual Low Intensity ICAO FAA L810 32.5cd

Name: LED Solar Aviation Obstruction Light Twin / Dual Low Intensity ICAO FAA L810 32.5cd
Brand: Annhung
SKU: AH-LS-LD
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (171 reviews)

Minimum Order Quantity :	1 Piece	Price :	Negotiable
Packaging Details :	Plastic bag with Paper Carton	Delivery Time :	2-15 days
Payment Terms :	T/T, Western Union, MoneyGram, L/C	Supply Ability :	1000 pieces per month

Place of Origin:	Shenzhen, China	Brand Name:	Annhung
Certification:	CE, ISO9001, ICAO	Model Number:	AH-LS-LD

Detail Information
Name:	LED Solar Aviation Obstruction Light Twin / Dual Low Intensity ICAO FAA L810 32.5cd	Standard:	FAA L810 ICAO ANNEX 14
Light Intensity:	32.5cd	Color:	Red
Mode:	Steady/Flashing Adjustable	Main-standby:	When Main Lamp Fail, Standby Lamp Turn On Automatically
High Light:	solar tower light , solar powered led flashing lights

Product Description

LED Solar Aviation Obstruction Light Twin / Dual Low Intensity ICAO FAA L810 32.5cd

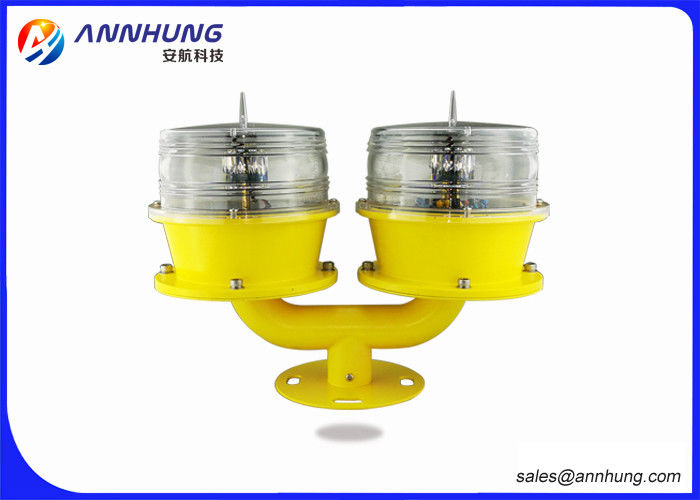

This LED Low-intensity Solar-Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. There are two lamps on two arms, one is main lamp, another is standay. When main aircraft warning lamp fail, standby aircraft warning light turn on automatically. 3/4inch thread hole underbase is very suitable for pole mounting.

Product Descripton

SPECIFICATIONS	AH-LS-LD Low-intensity Double Solar Aviation Obstruction Light
Light Characteristics
Light Source	LED
Available Colors	Red. Other colors are available if need, including IR
Intensity(cd)	＞32cd
Horizontal Output(degrees)	360
Vertical Divergence(degrees)	≥10
Flash Characteristics	Steady & Flashing adjustable
Operation Mode	Dusk-to-dawn Automatically as standard.
	24hours operation as option
	Main-standby mode
LED Life Experience(hours)	>100,000
Electrical Characteristics
Operating Voltage	3.7Vdc
Power(W)	1
Circuit Protection	Integrated
Solar Characteristics
Solar Module Type	Monocrystalline Silicon
Output(watts)	0.55
Charging Regulation	Microprocessor controlled
Battery Characteristics
Battery type	Lithium ion battery
Battery Capacity (Ah)	6
Nominal Voltage (V)	3.7
Battery Service Life	Average 3 years
Autonomy (hours)	Steady: 85
	Flashing: 190
Physical Characteristics
Lamb Body Material	Aluminum Alloy
Base Material	Powder-coated Die-casting aluminum
Installation Size(mm)	140×140×M6
Overall Size(mm)	162 by 162 by 160
Weight(kg)	3
Product Life Expectancy	Average 5 years
Environmental Factors
Humidity	0~100%
Wind Speed	80m/s
Waterproof	IP68
Compliance
ICAO	Annex 14 Volume 1,'Aerodrome Design and
	Operations’ Forth edition July 2004, table 6.3
FAA	Low intensity Type B FAA L-810
Options Available	Charging port
	Remote Control
	Flashing rate
	Auto/Manual toggle switch
	Powder-coated color
	NVG(Night Vision Goggles) compatitble LED

Dimension Drawing

LED Solar Aviation Obstruction Light Twin / Dual Low Intensity ICAO FAA L810 32.5cd 0

Packaging & Delivery

Packaging - Paper carton 1-9 piece/box.
Delivery - In 2-15 days after payment.

After-sales service

1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.

Datasheet download: download AH-LS-LD LED Low-intensity L810 Double Av...
