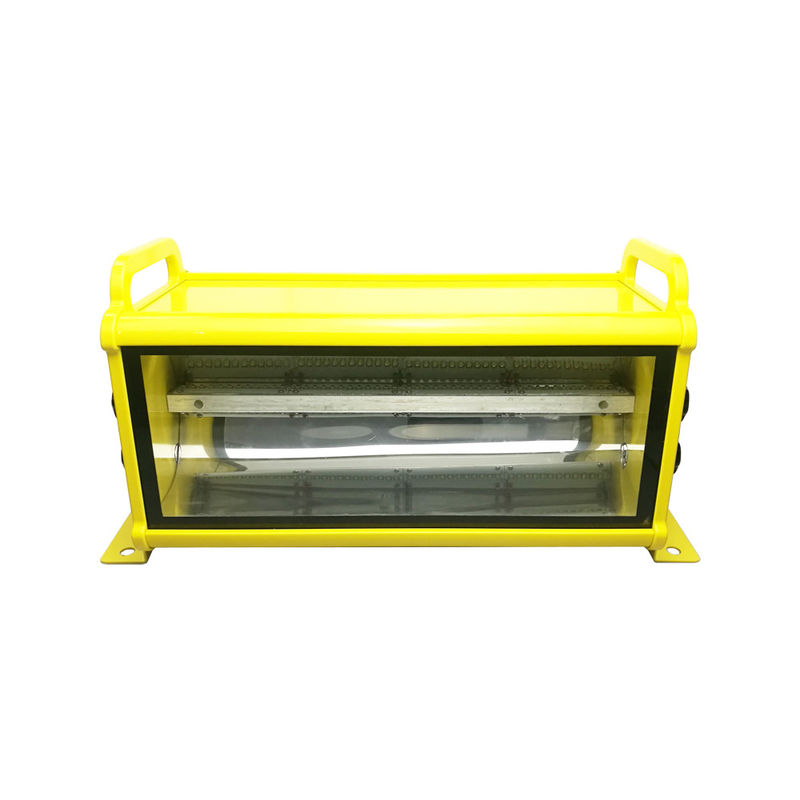

This High-intensity Aviation Obstruction Light flashing white color 24 hours and designed for marking top of
obstacle that exceed 150 meters in height. Ultra high intensity CREE LED is used for the light source ensure light’s long life experience and good performance. Self-designed reflection board ensure less LED could emitting brighter light.
System design
Built-in photocell for day/twilight/night operation
Surge and lightning protection
Optional
Alarm contact for remote monitoring
Infrared LED for pilot using NVG
User adjustable flashing rate(40, 50, 60 flashes/minute)
GPS synchronization
Solar powered system
Application
AH-HI-A0 High-intensity light is used on the top of the High-rise
Building, High Chimney, marking towers (Telecom, GSM,
Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when
the obstacle height is more than 150meter, and most time work with
low intensity lights & medium intensity light installed on the lower
place.
Operating Voltage
|
DC(48VDC) or AC(110, 240V) or others
|
Average Power(W)
|
<76W(40fpm)
|
Body Material
|
Polycarbonate
|
Weight(kg)
|
10
|
Waterproof
|
IP66
|
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 High
Intensity Type A Obstruction Light
FAA L-856, L-857
Electrical
CREE ultra high intensity LED as light source saving power
Power supply available in DC(48V) or AC(110V, 240V)
Physical
Unique design and UV protected polycarbonate lens for converging
light and saving LED power
UV protection Powder coated bright yellow color base make better
visibility
Base material is powder coated die-casting aluminum which has
strong corrosion resistance, Shock and Vibrations protection
Special valve installed beside the base to make sure the
air could go through but water is avoid, so that the whole
light temperature won’t be high to destroy the light
