Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.

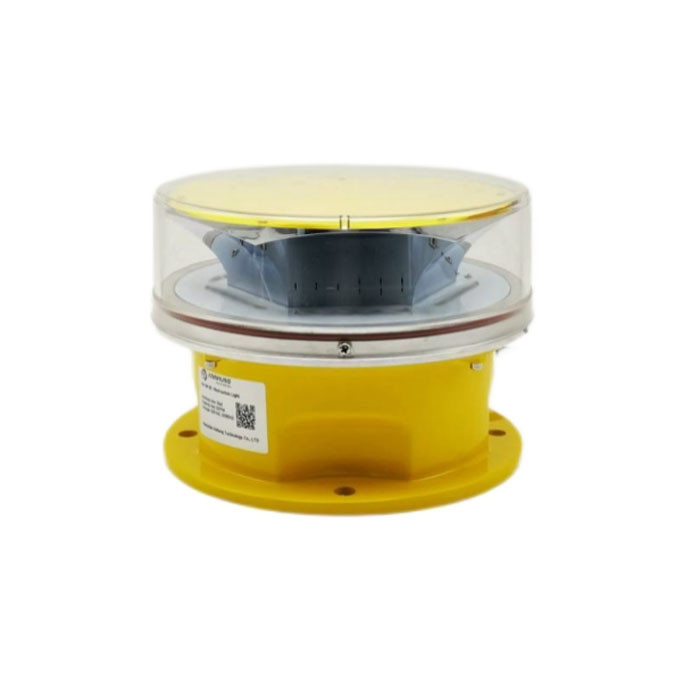

This LED Medium-intensity Aviation Obstruction Light emitting red color, designed for marking top of obstacle which height is more than 45meters.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B / C Obstruction Light
FAA L-864
CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards
Features
Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)
Physical
Unique design and UV protected polycarbonate reflector for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Special vent installed under base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high, to avoid the High pressure steam goes inside.
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
GPS devide inside for flashing synchronously
Optional
Dry contact Alarm output for remote monitoring
Other Flashing rate(20, 30, 40, 60, Steady mode)
Infrared LED for pilot using NVG
IOT Monitoring
Application
lAH-MI-B2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.
Company Information
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
