2000cd Medium Intensity LED Aviation Obstruction Light Integrated Circuit Protection
Product Details
| Horizontal Output(degrees): | 360 | Vertical Divergence(degrees): | 3 |
|---|---|---|---|
| Operation Mode: | Dusk-to-dawn Automatically As Standard. 24hours Operation As Option | LED Life Experience(hours): | >100,000 |
| Operating Voltage: | DC(12, 48VDC) Or AC(110-240VAC) | Power(W): | 10 |
| Circuit Protection: | Integrated | Better Protection: | Surge And Lightning Protection |
| Visibility: | UV Protection Powder Coated Bright Yellow | Light Intensity: | ≥2000cd |
| Emitting Color: | Red | ||
| Highlight |
tower warning lights,airplane warning lights |
||
Product Description

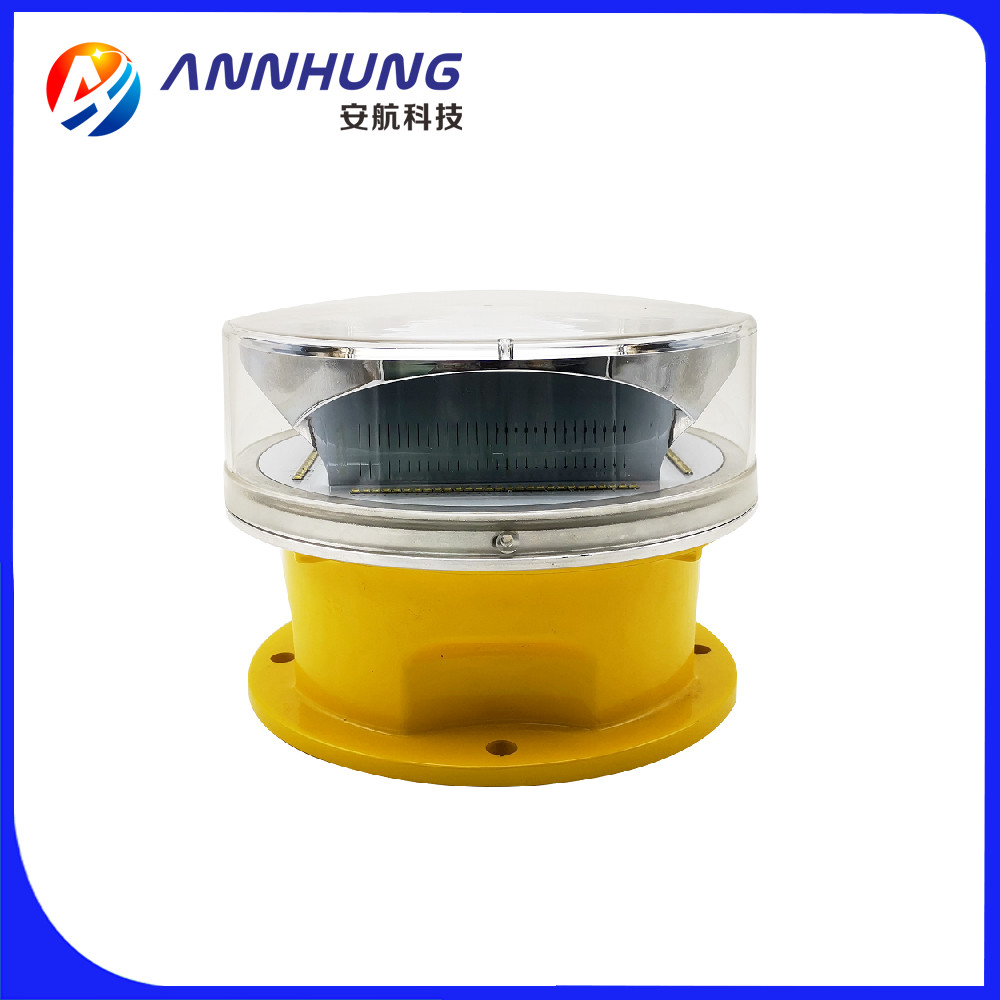

2000cd Medium Intensity LED Aviation Obstruction Light Integrated Circuit Protection
This ICAO Aviation Obstruction Type B L864 warning light flashing red color, other color is optional designed for marking top of obstacle which height is between 45 to 105 meters.
Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed lens converging light to very small vertical divergence 3° make it totally compliance with FAA-L864 standard.Best degisn for different projects.
Compliance:
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B Type C Obstruction Light
FAA L-864
Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12-48VDC) or AC(110-240VAC).
Physical
Unique design and UV protected polycarbonate lens for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high. Conatct me me now if you are interested!
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection. Protect your buildings for whole day.
Optional
► Alarm contact for remote monitoring
► GSM cellphone monitoring
► User adjustable flashing rate(20, 30, 40, 60 flashes/minute)
► GPS synchronization
Application
AH-MI-B2 medium-intensity safe warning light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place. Choose this light for your project.
| SPECIFICATIONS | AH-MI-B2 LED Medium-intensity Type B L864 Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | CREE high intensity LED |
| Available Colors | Red |
| Intensity(cd) | ≥2000cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 3 |
| Flash Characteristics | 20-60 flashes per minute(factory setting: 20fpm) |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| 24hours operation as option | |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12V, 24V, 36V, 48V) or AC(110-240VAC) |
| Power(W) | ≤10W(20fpm) |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 190×190×θ12 |
| Dimension(mm) | 229×229×168 |
| Weight(kg) |
4
|
| Product Life Expectancy | 5 years Plus |
| Environmental Factors | |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Seventh edition 2016, table 6.3 | |
| Medium-intensity Type B Red Obstacle Light | |
| FAA | L-864 |
| Options Available | |
| GPS sync flashing | |
| Infrared LED compatible for NVG (Night | |
| Vision Goggles) | |
| Dry contact alarm output | |
| RS485 communication | |
| Bird deterrent spike |
datasheet download:
download AH-MI-B2 LED Medium-intensity Type B L864...
Transporation:
Shenzhen Anhang Technology Company Limited is a specialized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction safety warning light, and have more than 8 years manufacturing experience for clients from whole world. Looking forward to start a business with you.
