Solar Marine Lantern
>
|
|
| Place of Origin | China |
| Brand Name | ANNHUNG |
| Certification | CE |
| Model Number | AH-ML-S7 |

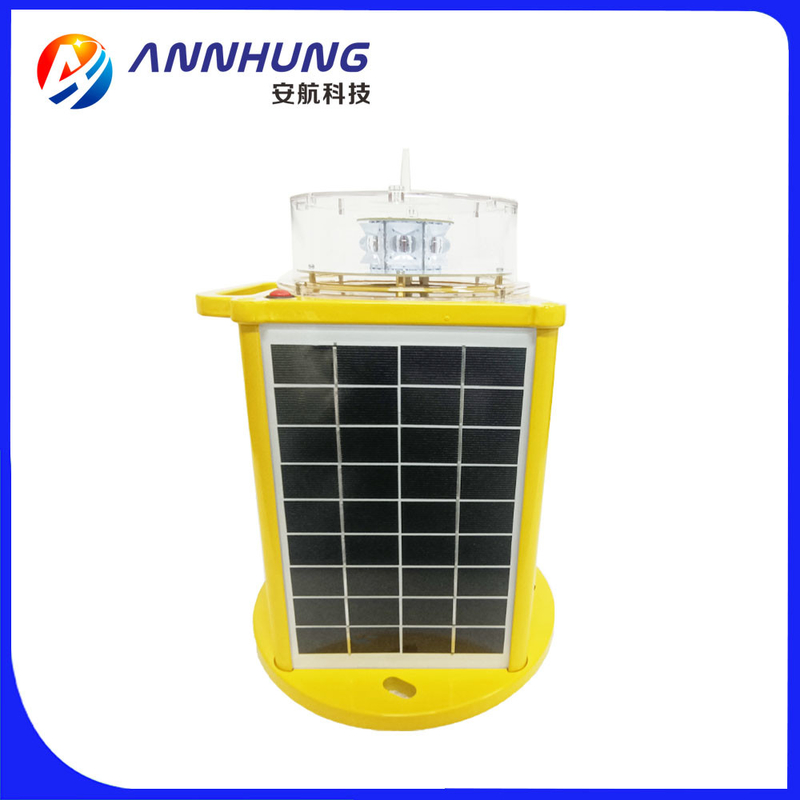

AH-ML-S7 LED Solar Powered Marine Lanterns
This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles.
CREE Ultra high intensity LED is used as light source which make performance better.
There is no need to open the light, the light flashing characteristics(IALA 366 flashes) could be remote controlled by IR Programmer easily. (Optional)
GSM Monitoring as optional function, when fault happens, it will send out text message automatically.
Compliance
IALA E-200-1
CE
Features
Electrical
Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs
Physical
PC housing, UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
Built-in photocell for day/night operation(dusk to dawn)
ON/OFF button interface located under base
Optional
Charging port & External battery charger
GSM Cellphone Monitoring
RS232 communication port
GPS Sync flashing
366 IALA flash characteristics adjustable
Infrared Programmer for flashing rate setting
Application
AH-ML-S7 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
FL3S(0.2,2.8) |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| LED Life Experience(hours) | >100,000 |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 12 |
| Mounting |
200×200×Φ12 |
| Dimension(mm) |
250×250×370 |
| Weight(kg) | 5.5 |
| Ambient Temperature(℃) |
-40~75 |
| Humidity |
0~100% |
| Wind Speed |
80m/s |
| Waterproof | IP68 |
| Options Available |
GPS Sync flashing |
