L810 LED Low Intensity Double Obstruction Light Aircraft Warning Marker
  • L810 LED Low Intensity Double Obstruction Light Aircraft Warning Marker
  • L810 LED Low Intensity Double Obstruction Light Aircraft Warning Marker
  • L810 LED Low Intensity Double Obstruction Light Aircraft Warning Marker
  • L810 LED Low Intensity Double Obstruction Light Aircraft Warning Marker

L810 LED Low Intensity Double Obstruction Light Aircraft Warning Marker

Place of Origin China
Brand Name ANNHUNG
Certification CE
Model Number AH-LI-B2
Product Details
Body Material:
Polycarbonate
Base Material:
Die-casting Aluminum
Mounting:
3/4 Inch Pipe Thread Or D140mm×M10*3
Dimension(mm):
254×90×210 Or 254×165×250
Weight(kg):
1.5
Available Colors:
Red
High Light:

dusk to dawn Double Obstruction Light

,

Die casting aluminum Double Obstruction Light

,

Polycarbonate Aircraft Warning Marker

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
7-15 work days
Payment Terms
T/T, Western Union, MoneyGram
Product Description

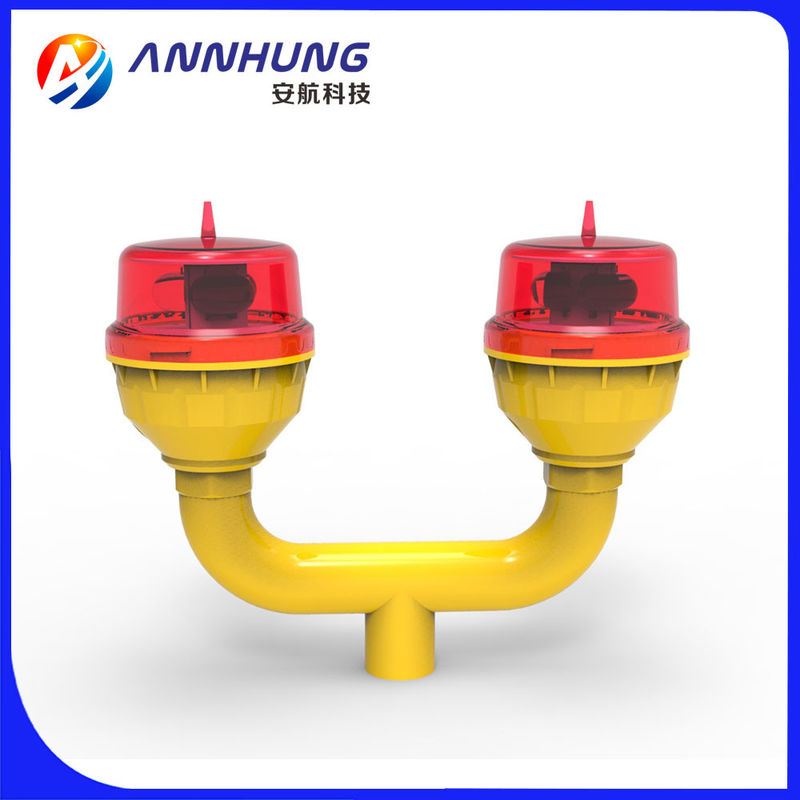

AH-LI-B2 LED Low-intensity L810 Double Aviation Obstruction Light

Main-standby mode ensure the obstacle is always marked even one light fail.

Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B /E Obstruction Light

Features
Electrical
CREE LED, make sure LED keep bright while use for long time

Physical
Bird deterrent spike on top
Unique designed PMMA lens for converging light and good transparency
UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments()
3/4inch thread hole make pole installation easy
No screw fix type - just twist, the cover will be fixed tightly

System design
Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below
50cd/m2
Steady/20FPM/30FPM/60FPM DIP switches on PCB
Surge and lightning protection

Optional
Infrared LED for pilot using NVG
Solar power system

Application
AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m

L810 LED Low Intensity Double Obstruction Light Aircraft Warning Marker 0

L810 LED Low Intensity Double Obstruction Light Aircraft Warning Marker 1
